Fiberglass Geogrid with Technical Data

Fiberglass Geogrid Composite Geotextile Fabric Providing Improved Loading
Capacity of Road Construction

Composite Geogrids are used for stabilize soils where a both reinforcing and
separation between a granular base and very fine soil is required. The
geocomposite binds closely to the soil being reinforced, separates different
soil types and provides an effective filter action.

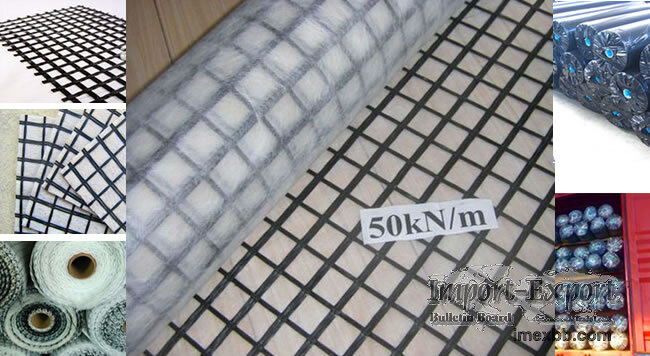

Composite geogrids are made by bonding a nonwoven geotextile to fiberglass
geogrid. The polypropylene / polyester geotextile stitch bonding or paste on
the fiberglass geogrid. With high tensile strength and excellent anti-tearing
and anti-bursting performance, this new compound building materials are widely
used in water conservation, road construction,architecture, subway and tunnels
construction.

Typical Structures of Compound Fiber Glass Materials:
For fiberglass geogrid composite geotextile materials, geogrid used has a
tensile strength of 20KN to 400KN.
Mesh size: 12.7x12.7mm, 25.4x25.4mm, 50x50mm
Elongation: <=4% or 3%.
Geotextile:
Non woven PET or pp geotextile
Unit weight: 25g/m2 to 500g/m2.
