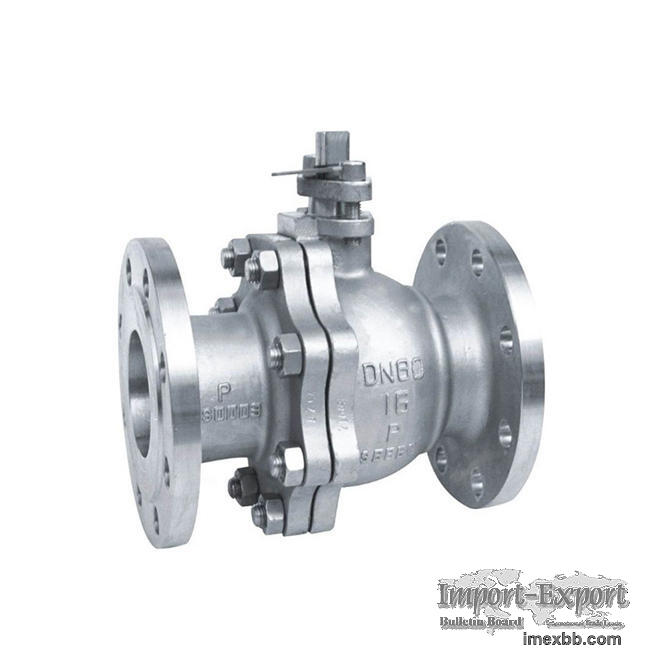

Flanged WCB Ball Valve

ball valve is a shut off valve that controls the flow of a liquid or gas by
means of a rotary ball having a bore. By rotating the ball a quarter turn (90
degrees) around its axis, the medium can flow through or is blocked. They are
characterized by a long service life and provide a reliable sealing over the
life span, even when the valve is not in use for a long time.
Flanged ball valves are characterized by their connection type. The ports are
connected to a piping system via flanges that are usually designed in
accordance with a certain standard. These valves provide a high flow rate since
they typically have a full-bore design. When choosing a flanged ball valve,
besides the pressure rating, you also have to check the flange compression
class which indicates the highest pressure this connection type can withstand.
