Flexible Metal Conduit Low Fire Hazard - PES23X-Germany Series

Flexible Metal Conduit Low Fire Hazard - PES23X-Germany Series
Product Description

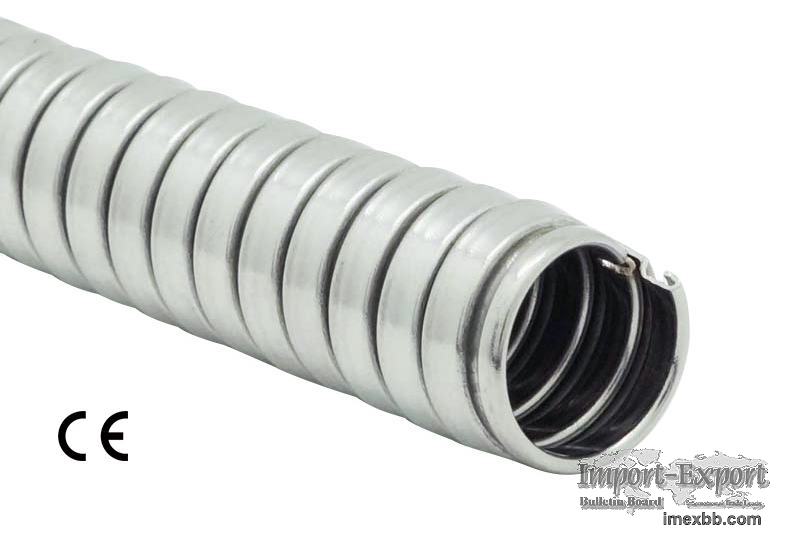

Flexible Metal Conduit, PES23X-Germany series is manufactured with stainless
steel strip by continuous wound in interlock profile. This series of flexible
metal conduit is developed with 3 classified levels, Light, Medium & Heavy, for
different applications. The conduit sizes meet with the system normally used in
Europe market. This series of product is excellent in tensile strength and
suitable for most of the environment temperatures. It is also Low Fire Hazard.
The material is RoHS approved as well. Applicable for electrical protection in
Buildings, Railway System, Marines, Elevators, and etc..
Material：Stainless Steel
Profile：Interlocked
Temperature Range: -100℃~+600℃
IP Rating: IP 40
Flexibility: Medium
Tensile Resistance: Light 250N / Medium 500N / Heavy 1000N
RoHS Compliance: Yes
Certificate: CE/EN61386
Nominal Conduit Size (mm) Nominal Conduit Size (inch) Part Number
ID (mm) OD (mm) Bending Radius (mm) Package / Roll (ft/m)
12 5/16 PES23X-G - 12 9.5±0.2 12.5±0.2 40 50
16 3/8 PES23X-G - 16 13.0±0.3 16.0±0.3 50 50
20 1/2 PES23X-G - 20 17.0±0.3 20.4±0.3 60 50
25 3/4 PES23X-G - 25 22.0±0.3 26.0±0.3 70 50
32 1 PES23X-G - 32 26.0±0.3 30.0±0.3 80 25
40 1-1/4 PES23X-G - 40 34.0±0.4 39.0±0.4 120 25
50 1-1/2 PES23X-G - 50 40.3±0.4 44.9±0.4 150 15
63 2 PES23X-G - 63 51.6±0.4 56.6±0.4 190 15
