Flexible Metal Conduit Fitting EMI Proof Solution

Flexible Metal Conduit Fitting EMI Proof Solution - BEZ05 Series（EU）

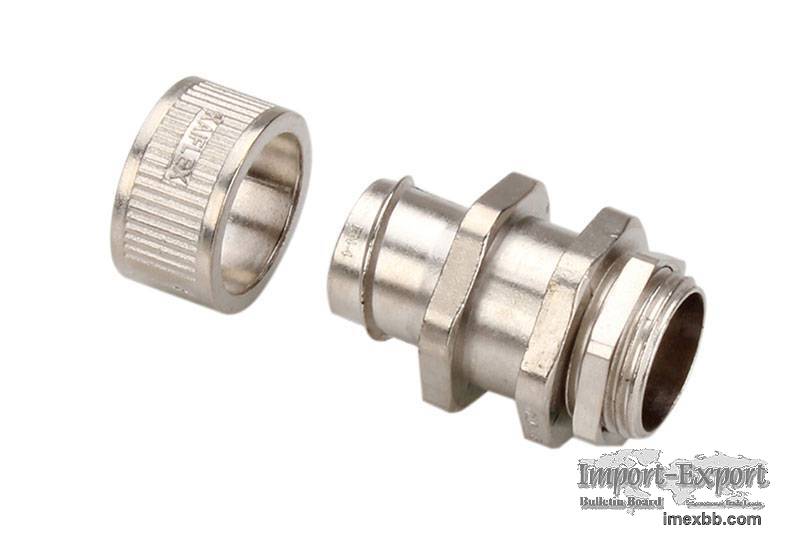

Metal Conduit Fittings BEZ05 series is a four-piece swivel straight connector
and has been designed to meet with IEC 60423 standard. The BEZ05 series is
applied on the relay or end point of wiring system to connect metal conduits
and junction box or enclosure for wiring extension and protection. The body is
made of zinc alloy with RoHS compliance which is connected with metal flexible
conduit by screwing in and covering with a nut and fixed to the knockouts of
junction box or tapped entries by locknut with M type male thread system. The
concise structure design is benefit for quick and convenient assembly and
swivel structure enable quick and efficient installation but remains the
feature of high tensile resistance at the mean time. For grounding purpose, an
extra grounding ring is suggested to apply. This series of fitting is proposed
to fit with metal flexible conduit series PEG13, PEG23, PES13 and PES23 with
braiding which will offer excellent efficiency of EMI prove.
Material：Zinc Alloy
Temperature Range : -50℃~+200℃
IP Rating : IP 40
Surface Finish : Nickel plated, other treatments are available by consult.
RoHS Compliance : Yes
Certificate : CE
Nominal Conduit Size Nominal Conduit Size PG Thread Part Number
Package / Box (Pcs) Weight / Box (Kg)
12 5/16 M16x1.5 M16-BEZ05-12 600 17.3
16 3/8 M16x1.5 M16-BEZ05-16 400 14.2
20 1/2 M20x1.5 M20-BEZ05-20 320 15.7
25 3/4 M25x1.5 M25-BEZ05-25 200 14.8
32 1 M32x1.5 M32-BEZ05-32 100 12
40 1-1/4 M40x1.5 M40-BEZ05-40 50 9.5
50 1-1/2 M50x1.5 M50-BEZ05-50 40 10.6
63 2 M63x1.5 M63-BEZ05-63 30 10
