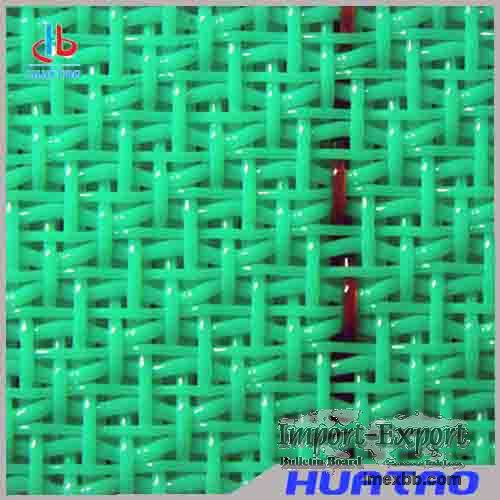

Forming Wire For Paper Making

The SSB 3 layer forming fabric or "wire" of a paper machine is the continuous belt
or belts of mesh screen upon which the paper sheet is formed. Most modern SSB 3
layer forming fabric are comprised of polyester monofilament. The weave pattern
and layering of a SSB 3 layer forming fabric is designed to meet stringent
requirements of dimensional stability, resistance to abrasion (on the wire side),
minimum resistance to drainage, minimum wire-mark, and (sometimes) maximization of
retention of fiber fines.
SSB 3 layer forming fabric woven using 24 harness technology, which allows 6 shaft
machine side construction to promote improved life potential. Available with 2 or 3
shaft paper side construction and 3:2, 2:1 or 1:1 weft ratio. Excellent raw
material is used to further improve life potential and reduce power consumption.
SSB 3 layer forming fabric family has options in 56, 36, 42, 60 styles depending
upon application or paper grade. The 56 design benefits from high modules machine
direction yarns which promote high FSI without compromise to dimensional stability.
Huatao's SSB 3 layer forming fabric should be available to all former types.

More details contact us:
Huatao Group - Paper Machine And Fabrics
Web: www.papermachineclothings.com
Email: maple@huataogroup.com
Tel: 0086 0311 80690567
Mob: 0086 133 3138 4775

Minimum Order: 10 square metres
