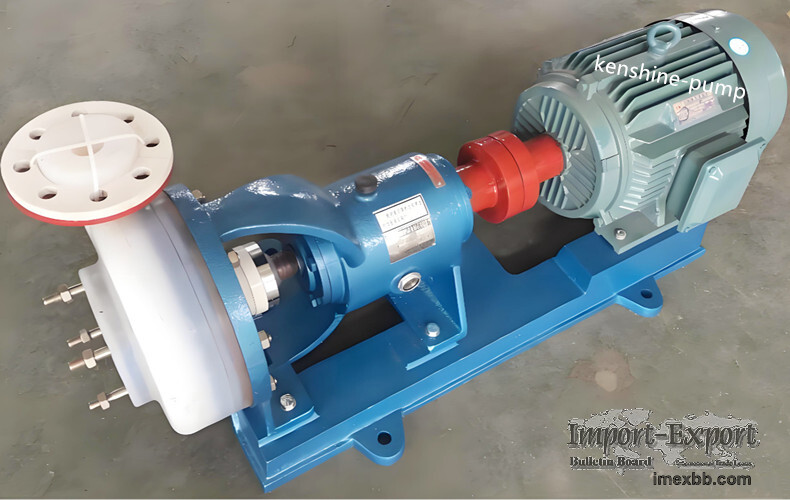

FSB-L Fluoroplastic Chemical transfer pump for acid

FSB fluorine plastic alloy pump is designed and made according to the international
standard. The pump body is made of the metal and FEP (F46) organic combination,
pump cover, impeller and shaft sleeve are pressed by molding of fluorine plastic
with metal insert. Shaft seal is mounted outside as the bellows mechanical seal.
The static ring choose 99% alumina ceramic or silicon nitride, ring with four
fluorine filling materials has the good corrosion resistance.

FSB fluorine plastic alloy chemical transfer centrifugal pump is suitable for
conveying the sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid,
nitric acid and aqua regia, strong alkali, strong oxidizing agents, organic
solvents, antioxidant and other harsh condition of strong corrosive medium with any
concentration.

Fluorine plastic is currently one of the world's most strong corrosion resistant
material. Prevent running, rising, dropping, leakage. FSB fluorine plastic alloy
pump is widely used in chemical industry, acid, alkali, smelting, rare earth,
pesticide, dye, medicine, paper, electroplating, electrolysis, pickling, electronic
components, scientific research institutions and other industries.

Fluorine plastic alloy centrifugal pump

50 the FSB - 30 D/L

50 : inlet diameter (mm)

FS :fluorine plastic material

B : single-stage single-suction cantilever centrifugal pump

30:head (m)

D :close coupling

L:Shaft coupling

Fluorine plastic alloy centrifugal pump features:

FSB type fluorine plastic alloy pump consists of pump body, impeller, cover, seal,
bracket, pump shaft, coupling shaft, lifting bolt, nut, bottom plate, etc.

1, pump body: left and right sides of the connection department embedded steel
flange ring each one molded plastic alloy. It has the advantages of compact and
reasonable structure, strong corrosion resistance, tight and reliable sealing
function, stable work, low noise, high mechanical strength, no aging, no toxin
decomposition, easy maintenance, smooth runner, high efficiency, energy saving and
so on.

2. A stainless steel (1Cr18Ni9Ti) alloy is embedded in the right side of the gland.

3. Impeller: adopt the connection method of connecting shaft. The metal shaft is
made of high-quality steel round processing and is formed by fluoroplastic pressing
at high temperature.

4. Mechanical seal: WB2 type, ST type adjustable single end mechanical seal without
cooling water is adopted, which is made of silicon carbide, high-purity alumina
ceramics, filled tetrafluorin, graphite and other materials

Minimum Order: 1 sets
