Full Color SMD P5 LED Outdoor Advertising Screens LED Moving Message Displa

LED Moving Message Display 40,000 Pixels / SQM P5mm Outdoor LED Screen

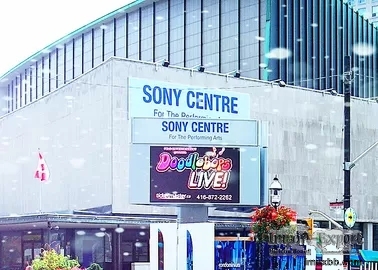

1. Applications:

Our Full Color SMD Outdoor P5 LED Display is mainly for outdoor usage, such as
commercial advertising,

mobile media, night club, entertainment events, business establishments, can
install in banks, stock exchange

centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping, malls, railways,

airports, harbors, etc





2. Quick Detail:


(1) SMD P5 Aluminum module
(2) High brightness

(3) Light weight and slim design

(4) Big View Angle

(5) IP68 Protect Grade



3. Description:


Dosatronics LED displays are high tech product with our own patent. Especially
outdoor LED display for advertising has high brightness, high contrast, high
refresh rate…All are popular both in domestic and overseas market. We adopt
unbeatable product stability through strict Quality Control System. It is very
correct for you to choose our company, our LED display products. All of them
has 3 years quality warranty since all component are extremely good. They can
bring you large fortune in a very short time.







4. Specifications:





Model No.

DS-AO-P5

Pixel Pitch

5mm

Module Size

160*160mm

Module Resolution(pixels)

32*32

Cabinet Size

640mm×640mm

Panel Resolution(pixels)

128×128

Pixel Configuration(RGB)

SMD 3 in 1

Pixel Density(pixels/㎡)

40000

Brightness , (cd/㎡)

7000

Best Viewing Distance(m)

6-50

Average Power Consumption(W/㎡)

300

Waterproof Level

IP65

Drive Method

1/4scan

LED SPEC

3535

Viewing Angle

140°(H)/140°(V)

Operating Temperature

–40~100

Video Frame Rate(Hz)

≥ 60HZ

Display Refresh Rate(Hz)

≥ 1000HZ

Grey Level(colors)

16.7million

MTBF

≥50,000 hours

Lifespan

≥100,000Hours

Working Voltage

220V±15% OR 110V±15%

Wavelength

R 620-625 G 520-525 B 470-475

Graphics Card

DVI Graphics card

Video Signal

RF, S-Video, RGB, RGBHV, YUV, YC, etc.

Control System

LINSN

Software

LED studio 10.0

Installation

Wall mount, hung and stand structure



5. Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range



6. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI)
Equipement.



7. Package

Carton. Fumigation-Free wooden case or Flight case



8. Control System Connection

Dosatronics Controls system






9. Our products have three unique advantagess

(1) Our module shell is aluminum,other companies are plastic.so it is lighter
and thinner.

(2) Our module have strong waterproof and heat-dissipation, the module can work
in the water of 100 degrees or 40 degrees blow zero environment.

(3) Display can work under extremely cold ,heat,humidity and other extreme
environments.
