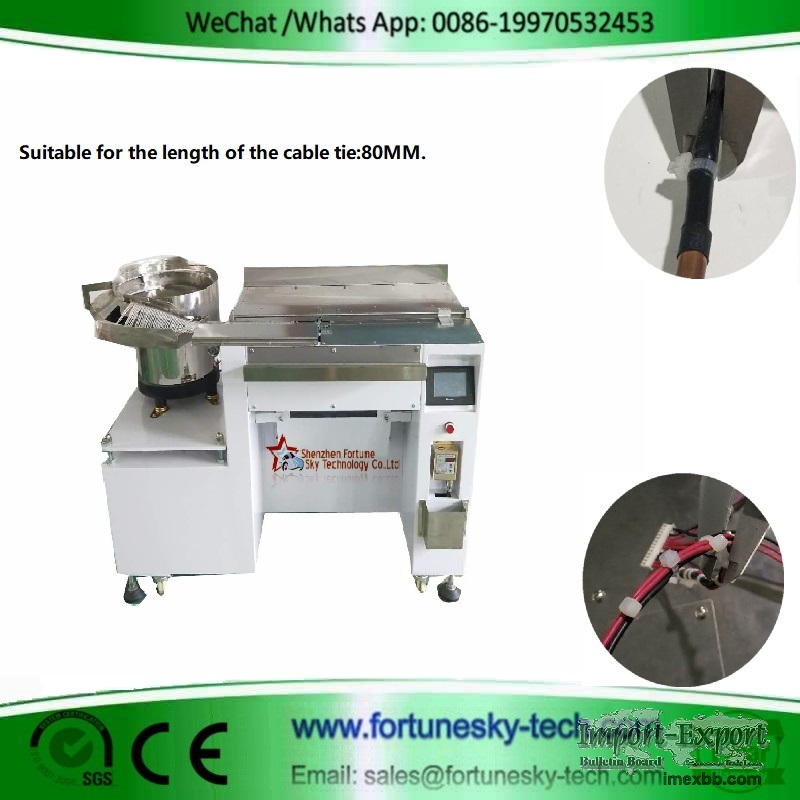

Fully Automatic Nylon Cable Ties Wire Tying Machine

Features:
1. bulk nylon cable ties realize automatic feeding,eliminate the trivial
process of manual discharging;
2. automatically insert the lock tie, and automatically cut the tie,save
time and effort,at least can increase the work efficiency by more than 4
times;
3. suitable for the length of the cable tie:80MM.
4. the automatic nylon cable ties wire tying machine is PLC program controls
circuit,good performance,easy to operate,set and run related parameter
values can be displayed directly on the LCD screen,clear,intuitive,high
degree of automation,good coherence,fast,the tightness of the cable tie can
be set freely,intelligent automation,just put the wrapped material on the
cable tie,the foot switch control,cable strapping can be completed in one
second, replace the hand tie,solve The tie of the hand straps is not
neat,the line size is different,and the speed is slow.Reducing loss from
manual processing and reducing people’s fatigue,this equipment can save
more than 30% of the labor force,significantly improve work efficiency,and
solve the difficulties of employment.(If you have other special
requirements,please contact us to customize the required functions)

Application:
Widely used in wire harness,electronic connecting line,sensor
industry,micro-motor industry,braided mesh tube,casing,casing bending and
re-bending,motor coil tie-belt, (AC/DC cable,headphone cable,mouse
cable,keyboard cable,power cord),home
appliances,cables,electronics,toys,gifts,food and other industries and
various parts.it is intimated in the factory with large amount of
bundles,completely solving the problem of low production efficiency of cable
ties.
Model No.:HWN-80 (customized by cable tie)
Power:AC220V 50/60HZ
Rated Power:100W
Scope:80MM
Cable Tie
Dimensions (LxWxH):1350x550x810(mm)
Total Weight:260KG
Bundling diameter reference table
Nylon Cable Ties Length (mm) Max. Tying Diameter Of Cable Bundle (mm)
80 12
100 18
120 22
140 28
150 30
160 32

Minimum Order: 1 pieces
