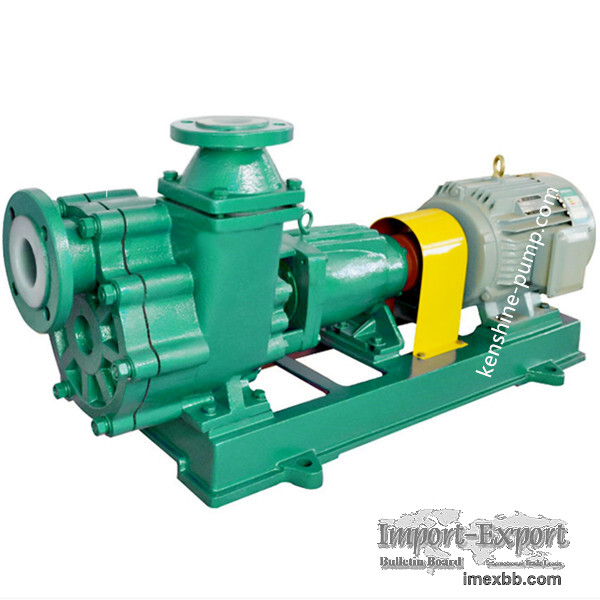

FZB Fluoroplastic alloy self priming pump

FZB fluorine plastic alloy self-priming pump Pump material: FEP/PTFE/PFA
fluoroplastic alloy with WB F4 External type bellows mechanical seal and suction
height is for 3 to 4 meters without bottom valve. The flow components of fluorine
Plastic alloy self-priming pump is made of fluoroplastic alloy molding press. It
has stronger mechanical strength, corrosion resistance, heat resistance than
fluorine plastic self-priming pump. Fluoroplastic centrifugal pump is for flow
backward condition (liquid) into the pump chamber without external force. Fluorine
plastic alloy self-priming pump is for suction conditions (liquid within 3 meters)
below the pump cavity. Flow rate: 2 to 100m3/h Head: 18-45m Connector way: Closed
coupling and shaft coupling. Working principle the pump body is operated in such a
way as to discharge the gas in the pump chamber, so as to generate pressure, which
makes the atmospheric pressure push the liquid in the low liquid tank into the
inlet vacuum pipeline, and transport the materials to the designated position
through the working principle of the centrifugal pump. Pump is used to transport
corrosive media or high-risk chemicals between -20℃ and 100℃.For example:
hydrochloric acid, fuming sulfuric acid, hydrofluoric acid, concentrated nitric
acid, phosphorus trichloride, phosphorus trichloride, caustic soda, calcium
chloride, organic solvent, strong oxidant and so on. (HCL, H2SO etc) Application
Urban environmental protection, construction, fire, chemical, pharmaceutical, dye,
printing and dyeing, brewing, electric power, electroplating, papermaking,
industrial and mining washing, equipment cooling, etc.

Minimum Order: 1 sets
