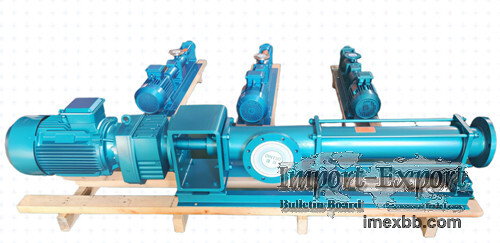

G Screw pump for molasses

G-type screw pump is a new type of pump that operates on the principle of rotary
meshing volumetric action. The main working components of the pump are the
eccentric screw (rotor) and the fixed liner (stator), which form a continuous
sealed cavity with their special geometric shapes, achieving uniform axial
transport of the medium. Its characteristics are strong adaptability to media,
capable of transporting high viscosity fluids and media containing hard particles
or fibers, with stable flow rate, small pressure fluctuations, and high self-
priming ability. The typical technical parameter range is flow rate 0-150m ³/h,
head 60-240m, and working temperature can usually reach 120 ℃. Driving motor can
be normal motor, explosion-proof motor, variable frequency motor, gear reducer,
stepless speed regulation, electromagnetic reducer etc.
G-type screw pump has a wide range of applications, suitable for fields such as
environmental protection, shipbuilding, petroleum, pharmaceuticals and daily
chemicals, food canning, brewing, construction, mining, chemical industry, printing
and papermaking, among others. In the environmental protection sector, it is used
for transporting sludge after dewatering in sewage plants, feeding plate and frame
filter presses, and adding chemical agents like flocculants and lime milk. In the
shipbuilding industry, it is employed for conveying fuel oil, cleaning tanks,
removing oil spills at sea, discharging wastewater and oily waste to shore, and
handling various materials. In the petroleum industry, it is utilized for
extracting and transporting heavy oil in onshore and offshore oil fields, as well
as conveying mixtures of oil, gas, sand, and other substances. In pharmaceuticals
and daily chemicals, it is used for transporting viscous slurries, emulsions,
pastes, cosmetics, and similar materials. In food and brewing industries, it
conveys starch, cooking oil, honey, syrup, fruit pulp, fruit juice, cream, fish
paste, meat paste, fermented viscous liquids, grain processing residues, various
sauces, slurries, and viscous liquids containing solid chunks. In the construction
industry, it is used for spraying and transporting cement mortar, lime slurry,
coatings, and other pasty materials. In the mining sector, it is employed for
pumping groundwater and contaminated slurry containing solid particles from mines
to the surface. In the chemical industry, it conveys suspensions, emulsions,
polymers, dyes, oils, and various colloidal slurries. In printing and papermaking,
it transports high-viscosity ink, PVC plastic paste for wallpapers, and paper pulp
or short fiber slurries of varying concentrations. Additionally, it is applied in
industries such as non-metallic minerals, metallurgy, casting, textiles,
electronics, and automotive manufacturing

Minimum Order: 1 sets
