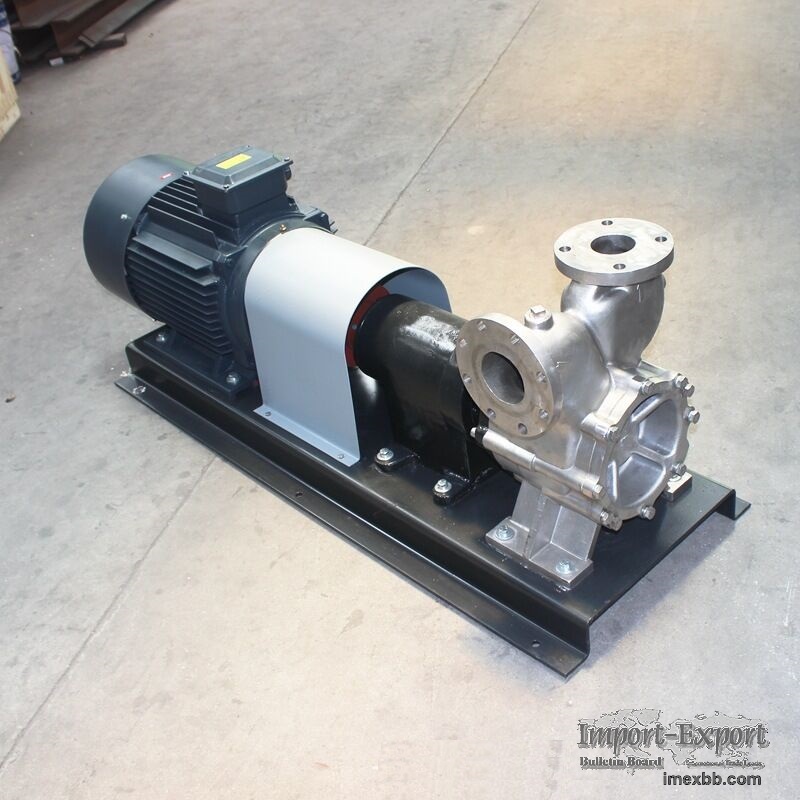

Gas-Liquid Mixing Pump Daf Pump Micro Bubble Regenerative nikuni Turbine

Product Description
Product Info.
Working conditions
Extra-thin clean, low viscous liquid, or liquid containing extra-fine foreign
matters
Liquid temperature: 5º F~248º F
Maximum ambient temperature: 104º F
Gas-liquid ratio: 1: 9 (gas suction volume 8-10%)
Inlet: Horizontal, outlet: Vertical

Scope of application
Air suspension treating equipment, ozone water preparing equipment, and
biological treating equipment;
Feeding of heating or cooling medium for various temperature adjusting devices;
Various filters: Sucking or high pressure transferring low viscosity liquid
from underground tank, such as gasoline and various solvent;
Misting treatment of clear water, pure water, foods, chemical solution and
waste solution;
Strict applications(continuous running, abrupt variation in hydraulic
pressure): Such as small scale stream boiler, high building water supply, high
pressure water injection to high pressure tank, and suction from vacuum tank;
Sampling from river or tank, feeding bubbly liquid, liquid feed through long
and horizontal pipeline, where air pockets likely occur.

Parameter:

Model Head Rated flow Driving motor Rotate speed
(m) (m3/h) (KW) (r/min)
20GLM-1 40 1 0.55 2900
20GLMB-1 40 1 0.55 2900
25GLM-2 40 2 1.1 2900
25GLMB-2 40 2 1.1 2900
40GLM-6 40 6 3 2900
40GLMB-6 40 6 4 2900
50GLM-12 50 12 5.5 2900
50GLMB-12 50 12 7.5 2900
20GLML-1 40 1 0.55 2900
20GLMLB-1 40 1 0.55 2900
25GLML-2 40 2 1.1 2900
25GLMLB-2 40 2 1.1 2900
40GLFL-6 40 6 4 2900
40GLMLB-6 40 6 4 2900
50GLML-12 50 12 7.5 2900
50GLMLB-12 50 12 7.5 2900

Minimum Order: 1 sets
