Gas Turbines 99.9% Pulse Dust Collector PPC64-8 496m2 Industrial Dust Extra

496m2 Pulse Jet Dust Collector For Gas Turbines Compressors

Filter Material:

1. Base media: Polyester 20% Cellulose 80%
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order

Other composition:
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the
durability
and life.
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of
Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.

Techinal parameters

model PPC32-3 PPC32-4 PPC32-5 PPC32-6 PPC64-4 PPC64-5 PPC64-6 PPC64-7 PPC64-8

Handling air volume (m3/h) 6900 8900 11160 13390 17800 22300
26700 31200 35700
Filtration wind speed (m/min) 1.2-2.0 (select different purification filter wind
speeds according to different dust points)
Total filtration area (m2) 93 124 155 186 248 310 372
434 496
Net filtration area (m2) 62 93 124 155 186 248 310
372 434
Number of dust collectors (units) 3 4 5 6 4 5
6 7 8
Total number of filter bags (bars) (pcs) 96 128 160 192 256
320 384 448 512
Dust collector resistance (Pa) 1470-1770
The dust collector is subjected to negative pressure (Pa) 5000
Imported gas dust concentration (g/m3) <200 <1000
Exhaust gas dust concentration (g/m3) <0.1
Ash pressure
Shrink air Pressure (Pa) (5-7)×105
Air consumption (m3/min) 0.27 0.37 0.46 0.55 1.2 1.5 1.8
2.1 2.4
Pulse valve amount) 3 4 5 6 4 5 6 7
8
Specifications (inches) 1-1/2′′ 2-1/2′′
Poppet valve
(with cylinder) amount) 3 4 5 6 4 5 6 7
8
Specification (mm) Lifting valve plate diameter Φ460, cylinder diameter Φ63
Lifting valve plate diameter Φ595, cylinder diameter Φ100
Star unloading device YJD-16 Feeding port 300×300, height 400mm, speed 41r/min,
gear motor power 1.5kW, output 39.4m3/h
Screw conveyor specification no
N/A Diameter Φ300, output 30m3/h (filling rate Φ=0.7)
Reducer no
N/A Model XWD2.2-5-1/59, power 2.2kW
Filter bag specifications and materials Diameter × length Φ130×2450, polyester
needle felt weight 450g/m2, use temperature 120°C
Insulation area (m2) 26.5 34 41 48.5 70 94 118 124
166
Total weight of equipment (approximate value) (Kg) 3110 4400 5700
7000 8940 10750 12570 14380 16200

Note:

1. The net filtration area in the table refers to the filtration area when a room
is cleaned. The total weight of the equipment does not include the weight of the
insulation layer.
2. The gas consumption in the table refers to the situation of centralized gas
supply in the factory. If a separate air compressor is set, the gas consumption in
the table is multiplied by 1.3.

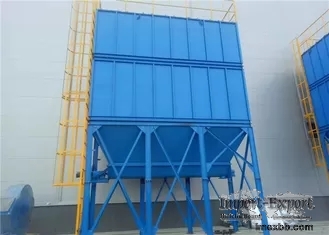

Click to Enlarge
