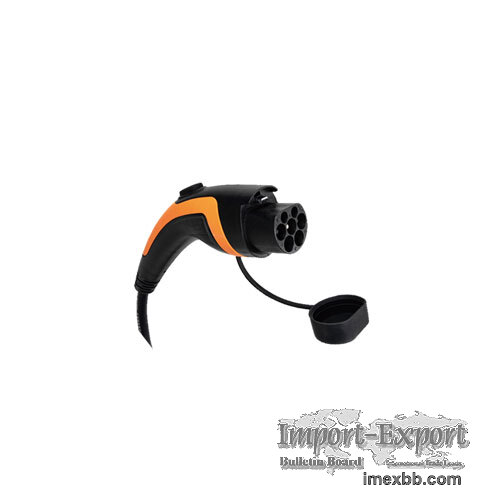

GB/T EV Charging Cable

Mechanical Properties
Mechanical life: no-load plug>10000times
Impact resistance: be able to afford 1m drop and 2tons vehicle run over
pressure
Insertion and extraction force:<100N

Electrical Performance
Rated current: 10A/16A/32A/63A
Rated voltage: 250V/440V/
Insulation resistance:>1000MΩ(DC500V)
Pins temperature:<50K
Withstand voltage: 2500V
Contact impedance: 0.5mΩMax

Raw Material
Shell material: thermoplastics, flame retardant grade UL94-0
Plug bush: copper alloy, silver plating+Top thermoplastics

Environmental Performance
Temperature: -30℃~+50℃

gbt ev charger Features
Conform to the provisions and requirements of GB/T20234.2-2015, this gbt
charger can charge all EVs manufactured in china, correctly and effectively
with high compatibility.

Using a riveting pressure process with none screw with beautiful appearance.
Hand-held design conforms to ergonomic principle, plug conveniently. The head
of pins using insulation design to prevent direct contact with the hand. The
customer is able to install the gbt charging indoor or outdoor, according to
actual demand. Firmly locking the charger on the installation backplane can
prevent stealing.

Have one or two PTC (PT100) thermistor (can match with NTC or Temperature
control switch)

XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath
improves the bending life and wears resistance of the cable. The best material
in the market at present conforms to the latest European Union standards.

Special internal waterproof protection performance, protection grade achieved
IP55 (working condition). The shell can effectively insulate the water from the
body and enhance the safety level even in bad weather or special circumstances.

Adopted double color coating technology, custom color accepted (the regular
color orange, blue, green, gray, white)

Keep the laser logo space for customers. Provide OEM/ODM service to help
customers expand the market easier.

Application of GBT EV Charger Cable
Apply to Vehicle
For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for
BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van,
for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for
SAIC Baojun E-Series, for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe,
for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for
Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall
Ora R1 EV

Application in area
Commercial EV Charging/Workplace EV Charging, Hotel EV Charging,
Home/Residential EV Charging, Public EV charging

AG ELECTRICAL GBT EV Charger cable acquires all safety and production
certificates in electrical filed, ISO9001, ISO 14001, OHSAS 18001, GB/T20234.2-
2015

GBT charging Cable Parameter
Product Type EV Charging Cable
Rated Current 10A/16A/32A/63A
Rated Voltage 250V, 440V
Phase One Phase/Single Phase,Three Phase
Cable Specification H07BZ5-F3X2.5mm²+2x0.75mm²
H07BZ5-F5X6mm²+4x0.75(p2)mm²
H07BZ5-F3X6mm²+2x0.75mm²
H07BZ5-F5X16mm²+4x0.75（p2)mm²
H07BZ5-F5X2.5mm²+2x0.75mm²
Length Regular 5m, custom length accepted
Color orange, blue, green, gray, white, custom color accepted
Warranty 12 months
Certificate GBT
Packaging Details Standard export wooden case or carton. Or as customer
requirements
Delivery Time (days) Within 15days, if quantity >500, to be negotiated

AG ELECTRICAL is one of the top electric vehicle infrastructure companies, our
GBT EV Charging products are sold to many countries all over the world. Our GBT
EV Charging Components can meet the needs of different customers in different
areas to the maximum extent.

Minimum Order: 1 pieces
