Gear/Rotary Damper RD-T068/V068

Gear/Rotary Damper RD-T068/V068
Characteristics
SOC Free, Screw, two-way, One-way,No angle limit
Component Parts
Less honorary seat: PC
Upper cover: PC
Rotor: POM
Gear: POM
O-RING: ,  VMQ
Oil: silicone oil
Durability
Ambient temperature: normal temperature 23°
Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1
turn) / 1s - pause / 1s
Lifetime: 30,000 times
Technical Specifications
Type 12 / / /
Number of teeth 12 / / /
Tooth width
Product height 19
Module 1.05 / / /
Pitch circle diameter Φ14.7
Pressure angle 20° / / /
Material POM / / /

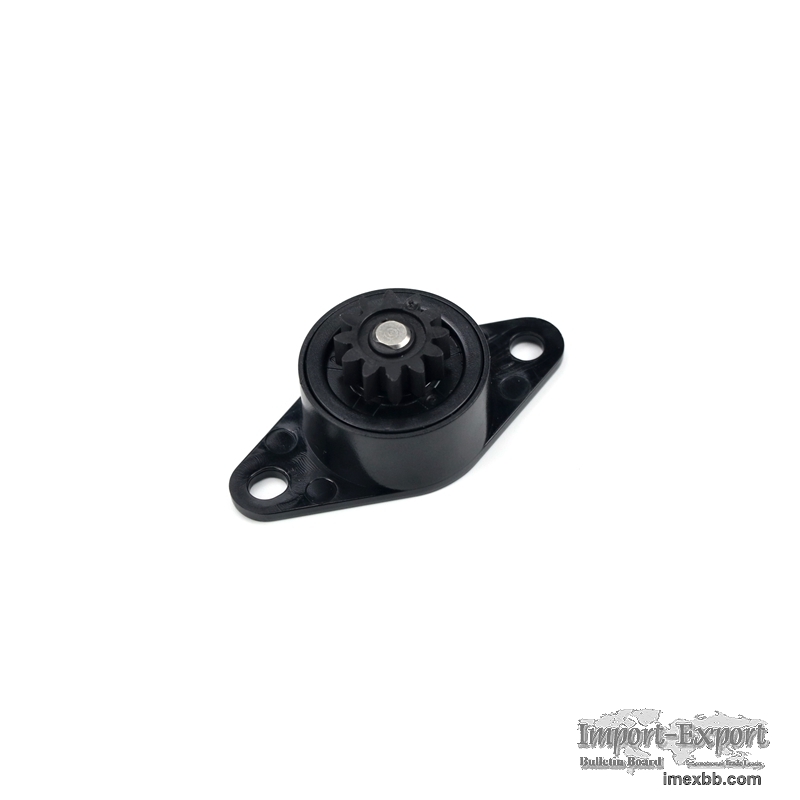

Gear/Rotary Damper RD-T068/V068
Enlarge Click to Enlarge
