Fire Damper Roll Forming Machine

Automatic Galvanized Steel & Stainless Steel Fire Damper Projector Solution

According to their functions, fire dampers can be divided into: smoke exhaust
valves, smoke exhaust fire valves, fire regulating valves, smoke and fire
regulating valves and other structures.



HAVC Fire damper production machine technical parameters

Item

Technology parameter

Material

Material

c , old-roll strip,galvanized steel strip

Thickness

1.0-2.5mm

Coi , l Inner

Ф360—Ф510

Process

F , orm Speed

0-13m/min

Length

Not limit

Quality

Length Precision

L≤1000mm:±0.5㎜

Stra , ight,

Deflection

L≤1000mm,Bend no more than 1mm;Deflection no more than 2mm

Forming size

As per design


Rectangular 70 or 280 degree smoke fire damper roll forming machine for
production different size frame

a. Power supply: 380V/50HZ/3PH, can customized as per user country.

b. Installed capacity: about 31kw.
c.Forming speed: 0-13m/mind.
d.Shearing method: Servo front shear
e. Drive motor: Unwinder motor 4KW.
leveling motor 2.2KW.
hydraulic punching cutting and hydraulic tensioning motor (two sets)
11KW+7.5KW. forming main engine 5.5KW.
servo motor 2KW

Minimum Order: 1 pieces

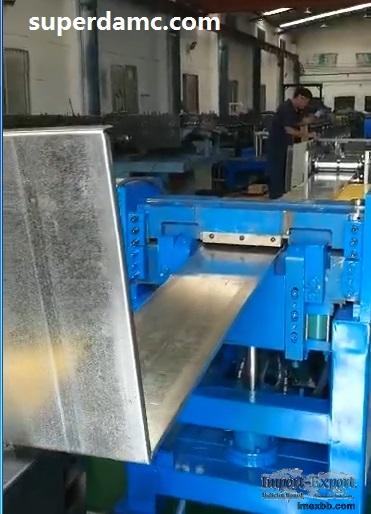

Fire Damper Roll Forming Machine
