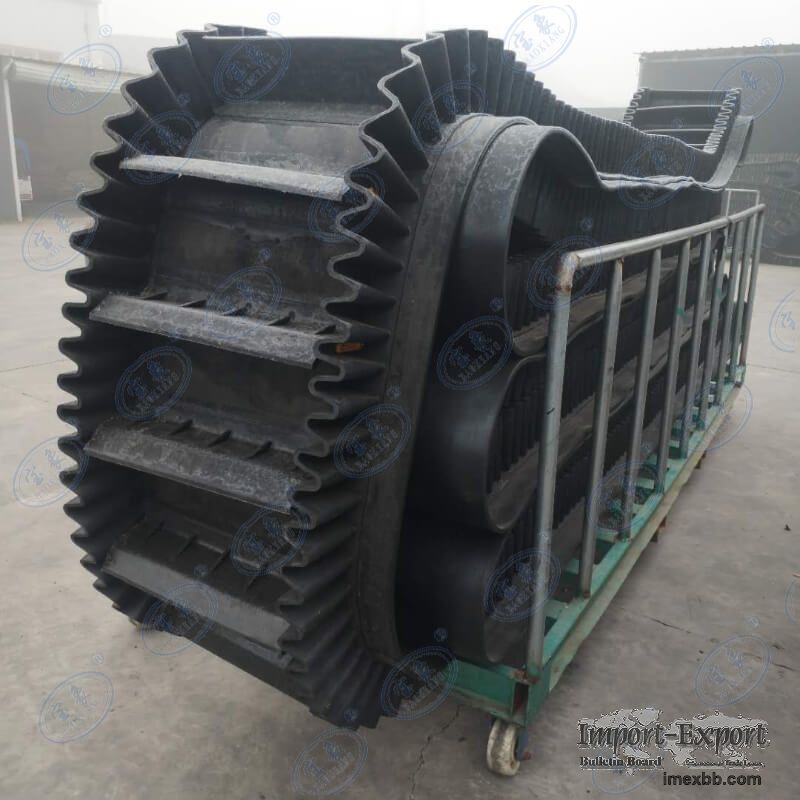

General Rubber Conveyor Belt

General Rubber Conveyor Belt cotton polyester canvas conveyor belt
industrial conveyor belts manufacturers

PRODUCT DESCRIPTION
General Rubber Conveyor Belt product features
1. Ordinary conveyor belts are made of cotton canvas (CC) or VC (VC) after
rolling, molding, vulcanization and other processes.
2. Rubber conveyor belt is suitable for conveying non-corrosive bulk, granular
and powder materials, such as coal, coke, sand, cement and other bulk materials
or finished articles at room temperature.
3. The product can be made into different structures, such as envelope-side
type, open-side type, middle ladder type and side ladder type, to meet the
requirements of different use conditions.
Baoxiang Cotton polyester canvas conveyor belt
Cotton canvas is made of cotton fiber in both warp and zonal direction, with
low elongation and good adhesion.Under the condition of high temperature
deformation is small, suitable for short distance, transport volume smaller
situations, conveyor belt is made of cotton conveyor belt upgrade product
quality, its tensile body USES the meridional blended YingWei and zonal, cotton
woven performance is better than that of cotton conveyor belt, especially with
thinner, lighter, impact resistant performance is greatly improved.Suitable for
conveying materials in short distance and medium load conditions.
According to the different properties of the covering rubber can be divided
into ordinary type, heat resistant type, fire resistant type, burn resistant
type, acid and alkali resistant type, oil resistant type, etc.
rubber conveyor belts Specification
(1) Core material: TC-70 polyester/cotton interwoven fabric, CC-56 cotton
canvas
(2) Belt width: 100mm-1600mm
(3) Layer: 1-10 layers
(4) Covering glue: Working surface: 1.5-9mm Non-working surface: 0mm-4.5mm
Belt width(mm) Cloth layer number Thickness of covering glue(mm)
Working surface Non-working surface
300 3~5 4.5 3.0 1.5 3.0 1.5
400 3~6 4.5 3.0 1.5 3.0 1.5
500 3~6 4.5 3.0 1.5 3.0 1.5
650 3~6 4.5 3.0 1.5 3.0 1.5
800 3~8 6.0 4.5 3.0 1.5 3.0 1.5
1000 3~8 6.0 4.5 3.0 1.5 3.0 1.5
1200 4~10 6.0 4.5 3.0 4.5 3.0 1.5
1400 4~10 6.0 4.5 3.0 4.5 3.0 1.5
1600 4~10 6.0 4.5 3.0 4.5 3.0 1.5
1800 5~10 6.0 4.5 4.5 3.0
2000 5~10 6.0 4.5 4.5 3.0
2200 5~10 6.0 4.5 4.5 3.0
(1) Specification for tensile strength of tape of full longitudinal thickness：
N/mm
180 200 250 315 400 500 630
(2) Physical properties of cover：

Overlay performance level code Tensile strength ≥ elongation at
break %≥ Abrasion value mm3≤ 70℃ × 168h After aging,
the change rate of tensile strength and elongation at break %　
MPa kgf/cm2
Laceration resistant type H 24.0 180 450 120 -25~+25
Anti-abrasive type D 18.0 140 400 100 -25~+25
Ordinary type L 15.0 100 350 200 -25~+25

(3) Interlaminar bonding strength (including natural fiber fabric core)
Index name Cloth layer between Between the covering layer and the
cloth layer
Thickness of covering layer≤1.5mm Thickness of covering
layer＞1.5mm
N/mm N/mm N/mm
Average value of longitudinal sample ≥ 2.7 2.1 2.70
The lowest peak value of all longitudinal samples≥ 2.7 1.6 2.2

Baoxiang provides rubber belting for sale, we are committed to the alkaline
resistant conveyor belt, material handling conveyor belt series, rich
experience, welcome to consult.
