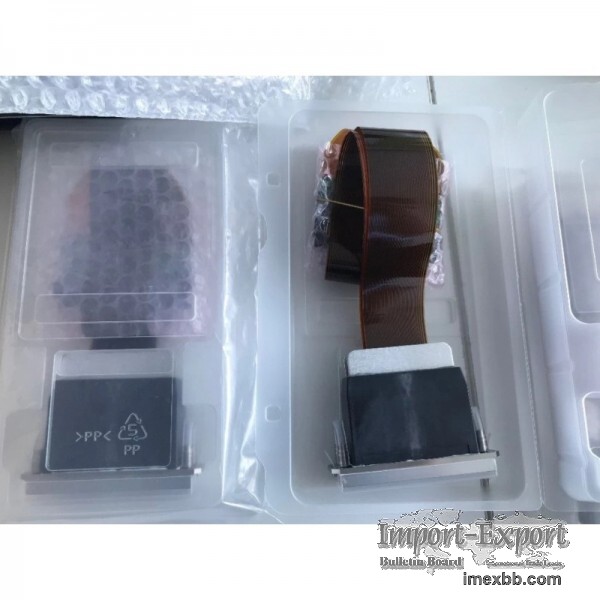

Genuine Ricoh Gen5 Printhead for mimaki

Ricoh GEN4L27PL Printhead MH2820 is suitable for a range of oil, water, solvent and UV printers. This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty.

Technical Specifications

– Size: 13,2 x 120 x 75,5 mm (excluding cables)

– Head Materials: SST, Ni and Epoxy Adhesive (direct contact with ink)

– Nozzle Plate Surface: Non-wet coating

– Number of Nozzles: 2 x 192 nozzles

– Nozzle Spacing: 0,1693 mm

– Piezo Type: D33 Stacked PZT

– Temperature Control: Integrated Heater and Thermistor

– Operator Temperature range: Up to 80° C

– Native Drop Volume: 27 pl

– Drop Volume Range: 27-54 pl

– Jetting Frequency: Up to 30 kHZ

– Life: 100 billion actuations per nozzle

Minimum Order: 1 pieces

Genuine Ricoh Gen5 Printhead for mimaki
