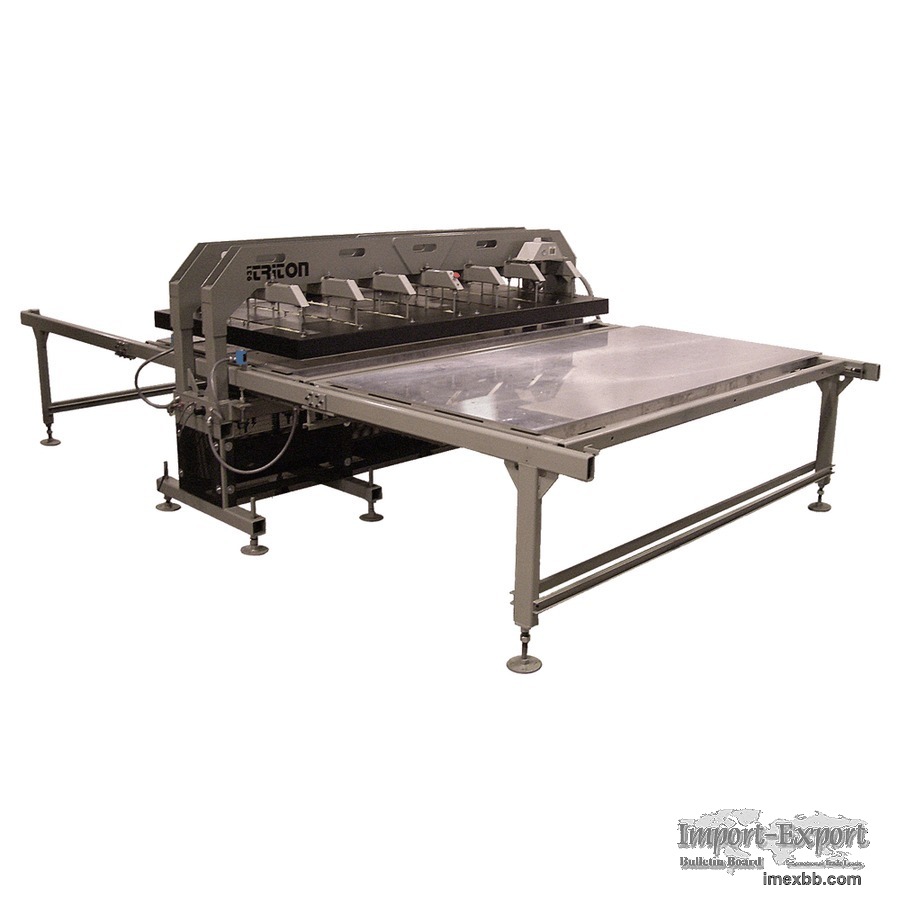

Geo Knight 931 TRITON Auto-Shuttle Heat Press

The 931 TRITON is a large format pneumatic heat transfer, press built for
pressing a wide variety of materials. It is geared, towards high-production
pressing of multiple piece goods as, well as 4’ x 8’ sheet materials. The
931 TRITON answers the demand for a more stable, solid work base along with
the capability of pressing transfers, in an oversized, large-area
environment. Typical applications include heat transfer printing onto
fabrics such as banners &, garments, thicker materials such as carpets &
mats, rigid goods, like tile & ceramic, as well as wood, sheet metal,
plastics, polyester coated synthetics and a vast range of other substrates.
Typical processes used are sublimation printing, hot splits, foiling,
embossing, laminating, hot-stamping, heat sealing and, other applications
requiring a massive size heat transfer press.

FEATURES
Digital integrated temperature and time control
Available in 240V 3-Phase or 480V 3-Phase Power
Available in Single shuttle or Dual loading table format
Multi Air Bag Pressure design for Self Leveling of pressure
Precision PLC Motor Controlled Automatic Indexing of Tables
Uniform Lift / Parallel Platen Action & Adjustable Applied Force
Productive Foot Pedal Operation & Emergency Release Safety Circuit
Electronic Photo Eye Safety Sensor Light Curtain Around Heat Platen
2" Thick Solid Mirror Surface Ground Aluminum Heater Platen
Oversized heat platens ranging up to 8ft x 12ft available upon request

Minimum Order: 1 pieces
