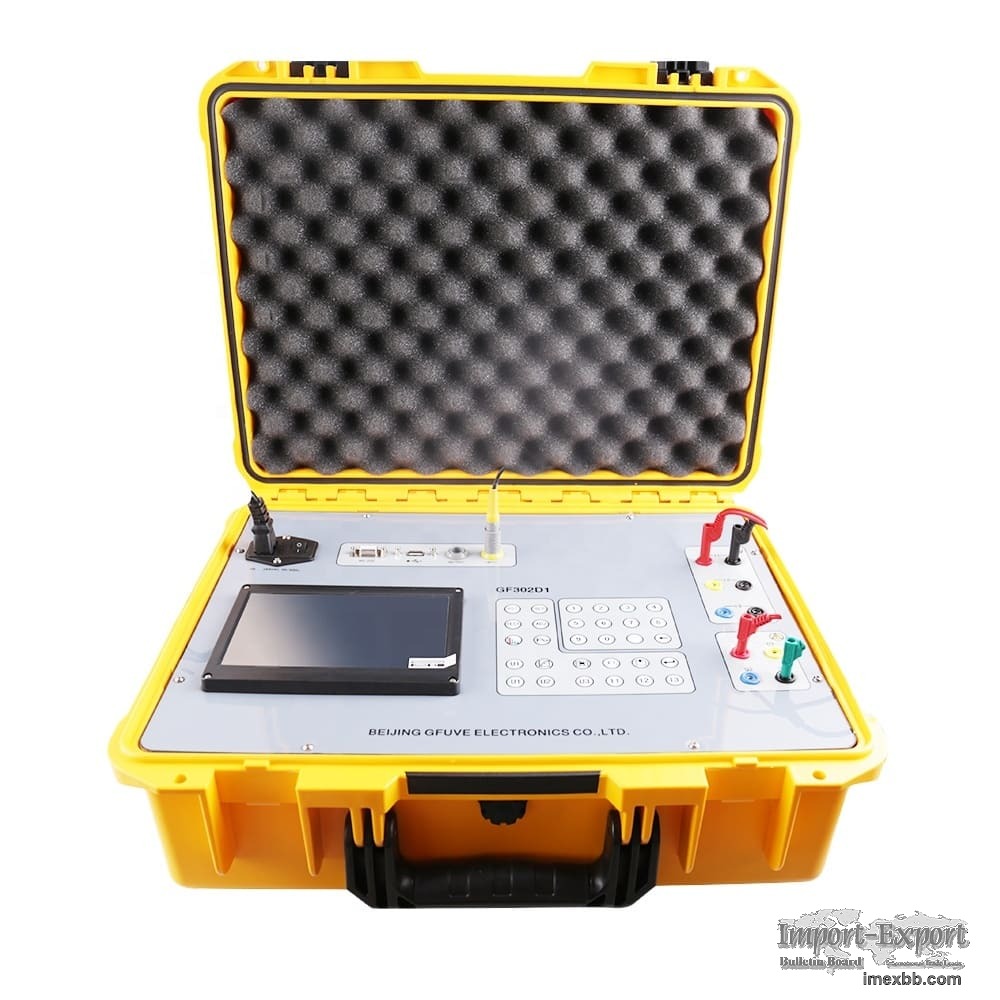

GFUVE THREE PHASE PORTABLE ENERGY METER TEST EQUIPMENT GF302D1 test kit

The GF302D1 three phase portable energy meter test equipment consists of an
integrated three phase current source(up to 500V/120A or 500V/20A) and built-in
three-phase electronic reference standard of accuracy class 0.05%. Characteristic
features of the GF302D1 are its wide measuring range, high accuracy and high
tolerance to unwanted external influences. The equipment offers high functionality
combined with an excellent menu guided operation via built-in keyboards and
colored 7" touch LCD-display. Voltage & current harmonics output from 2 to 63
times. This model portable meter test equipment can be programmable by PC,
automatic
generation of energy meter error test report.

Specification
Warranty: 3 years
Power: Electronic
Other attributes
Customized support: OBM
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF302D1
Accuracy: 0.05%, 0.1%
Power supply: One Phase AC 100-265V, frequency 50/60Hz.
AC voltage Output range(U1,U2,U3): 0-500V; 0-380V; 0-300V
AC Current Output range(I1,I2,I3): 0-6A; 0-12A; 0-20A; 0-50A; 0-120A;
Voltage adjustment range: (0-120)%RG
Active power output stability: <0.01%RG/120s
Reactive power output stability: <0.02%RG/120s
Active power measuring accuracy: 0.05%RG
Reactive power measuring accuracy: 0.1%RG
Dimension: 495x390x195 mm
Weight: 12.8 kg

Minimum Order: 1 sets
