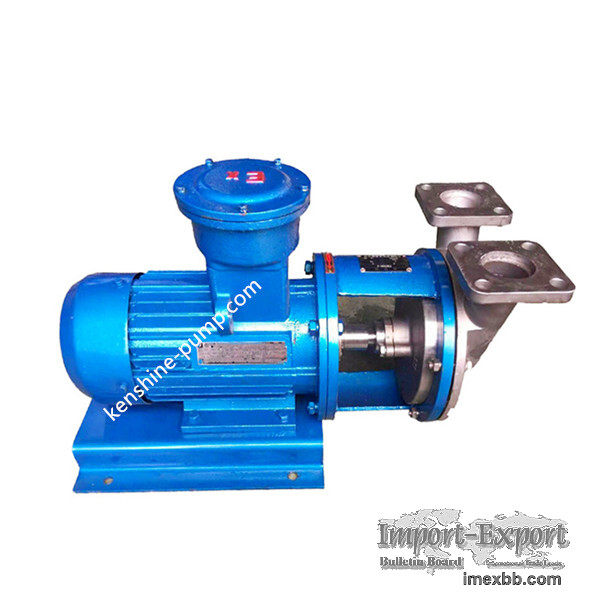

gh Vacuum Self Priming Chemical Pump

high vacuum self-priming pump

VSP strong self-priming pump is mainly composed of pump body, pump cover, rotor
assembly and power components.

The rotor assembly is installed in the pump body and pump cover of the pump cavity.

The power component drives the rotor assembly to rotate so that the volume of seal
chamber in the pump cavity changes and have vacuum to suck the fluids quickly.

Advantages:

super self-priming performance, water test suction height of 8.2 meters, far higher
than other self-suction pump 3 ~ 4 meters suction height

wide viscosity range of pumped liquids, volatile solvent and high viscosity oil,
glue etc.

can be pumped.

The filled liquids into barrel can be pumped entirely, with a higher purity than
that of the vacuum unit, Self-priming time is very short, Strong cavitation
resistance.

And simple structure, few parts, easy installation, easy maintenance, long service
life.

Features

1 - Strong self-priming ability: innovative structure with a suction height up to
8.2 meters.

2 - Short self-imbibition time: 3m / 2m, 5m / 8m, and 8m / 15s.

3 - Wide pumping range: it can pump volatile solvent and high viscosity liquid.

4 - Strong cavitation resistance: it can pump the liquid in the vessel with high
vacuum degree.

Application

1 - Various low-specific gravity, volatile solvent solutions, extraction and
transportation.

2 - Liquid extraction and delivery in drums (instead of barrel pump).

3 - The residue in the tank is pumped entirely.

4 - Extraction and cleaning of sludge from bottom of pool and tank.

5 - Agricultural, pharmaceutical, intermediate and other chemical industries.

6 - High viscosity liquid extraction and transportation in cosmetics, oil and other
industries.

7 - Beer, yellow rice wine and other brewing related industries.

8 - Dairy, dairy and other food related industries.

Minimum Order: 1 sets
