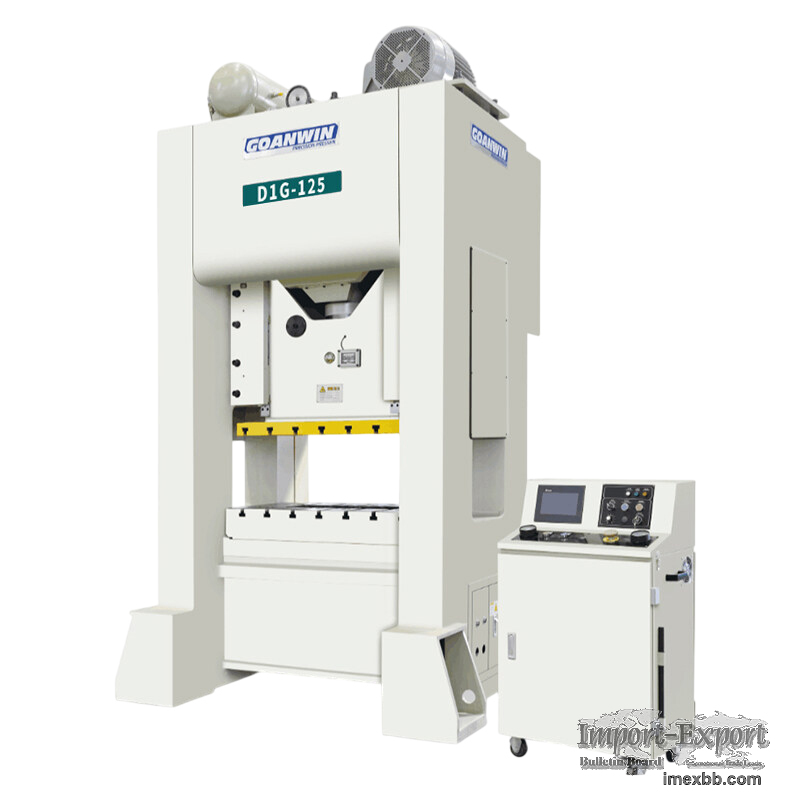

GOANWIN D1G H-Frame Single Crank High Speed Press for Motor Fan-shaped Plat

Applications
Punching, forming, blanking, bending, drawing, and trimming.
- 300T/400T are suitable for stamping motor fan-shaped plates.

Description
The GOANWIN D1G H-Frame Single Crank High-Speed Press is meticulously
designed for a variety of applications, including punching, forming,
blanking, bending, drawing, and trimming. This press features a steel-
welded, close-box frame for high rigidity and minimal deformation, ensuring
exceptional stability during high-speed operations.
With a large-size table and slide, the D1G Series offers ample workspace
for handling complex tasks with ease. The eight-slide rectangular guides
and needle rollers ensure high precision and stability, while the hydraulic
locking device enhances the accuracy of the bottom dead center. Equipped
with advanced features like a rotary encoder control and a user-friendly
human-machine interface system, the D1G press guarantees efficient and
precise operations across diverse industrial applications.
Built for reliability and performance, this press is an ideal choice for
manufacturers seeking high-speed solutions with uncompromising quality and
safety.

Features
1.Robust Frame Construction
- Steel-welded close-box frame ensures high rigidity and reduces
deformation for enhanced stability.

2.Ample Workspace
- Large-size table and slide, with generous space between uprights for
convenient operation and improved efficiency.

3.Shock Absorption
- High-rigidity casting slide optimizes shock absorption to maintain
consistent performance.

4.Precision Guidance
- Eight-slide rectangular guides and needle rollers ensure smooth, high-
precision operation.

5.Enhanced Accuracy
- Hydraulic locking device for connecting rods improves the precision of
the bottom dead center.

6.Advanced Controls
- Equipped with rotary encoder control and a human-machine interface system
for seamless operation and monitoring.

Specifications
- Tonnage: 80–400 tons.
- Speed: 160–220 S.P.M.
- Frame Type: Steel-welded, close-box H-frame structure.
- Guiding System: Eight-slide rectangular guides with needle rollers for
high precision.
- Slide Construction: High-rigidity casting slide for shock absorption.
- Locking Device: Hydraulic locking device for enhanced bottom dead center
accuracy.
- Control System: Rotary encoder with human-machine interface.
- Lubrication System: Re-circulation lubrication device for smooth
operation.

Sales Service
- Guaranty Period: One year for main machine parts (excluding wearing
parts).
- Parts Delivery: Dispatched within three working days via TNT.
- Technical Support: Assistance provided via email or video; overseas
technicians available at additional costs.
- Installation & Commissioning: Technicians can be dispatched for
installation and commissioning, with costs covered by the buyer.

Standard accessories
- Hydraulic over-load protector.
- Motorized slide adjusting device.
- Digital die height indicator(unit:0.1mm).
- Balance device.
- Rotary cam switches.
- Crank angle indicator.
- Circulating centralized lubricating oil supply device.
- Electromagnetic stroke cunter.
- Against over-run safety device.
- PLC controller.
- Air Ejector.
- Air source receptable.
- T-Mobile station.
- Independent electrical control box.
- Maintenance tool box.
- Inverter.
- Anti vibration device.
- Power plug.

Optional accessories
- Die cushion.
- Slide knockout device.
- Die room light.
- Main motor reversing device.
- Preset counter(3digits).
- Photo electronic safety device.
- Security and safety latch stopper.
- Preset counter(6digits).
- Load detection monitor.
- Msifeed detecting device.
- Base screws and base plate.
- Security and safety ladder rack.
- Power socket.
- Quick die change device.

The GOANWIN D1G H-Frame Single Crank High-Speed Press combines strength,
precision, and versatility, making it the ultimate solution for your
manufacturing needs. Whether you’re handling punching, forming, or drawing
operations, this press ensures exceptional performance and safety. Contact
us today to learn how the D1G Series can elevate your production
efficiency.

Minimum Order: 1 pieces
