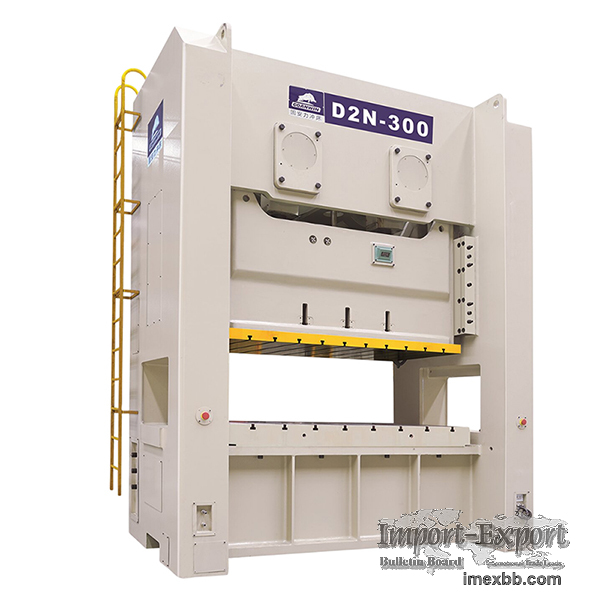

GOANWIN D2N H-Frame Double Crank Press for Auto Parts, Air Conditioner Pane

Applications
Xiaomi LCD TV back panel, Midea air conditioner motor bracket, new energy
battery positive and negative plates, Midea vertical air conditioner base
shell, TV pendant, car bumper, new energy vehicle battery cover plate,
lithium battery special aluminum shell, filter, barbecue tray, high-speed
rail speaker bracket.

Description
The GOANWIN D2N Series H-Frame Double Crank Press is a precision-
engineered, high-performance solution for a wide range of metal stamping
applications, including auto parts, air conditioner panels, refrigerator
bases, and other precision components. Built for industries such as
automotive, home appliances, hardware, and electronics, this press combines
robust construction with advanced features to meet demanding production
requirements.
Constructed with a high-rigidity welded steel frame and treated with shot
blasting and stress elimination techniques, the D2N Series ensures
durability and stable precision. Its four-corner and eight-side long guide
rails, paired with advanced crankshaft and transmission design, guarantee
high accuracy and excellent offset load resistance.
The D2N Series is equipped with state-of-the-art safety features, including
a hydraulic overload protector, double solenoid valve, and a brake release
device, ensuring both operational safety and emergency stop capabilities.
With low noise and vibration, frequency conversion speed regulation, and
compatibility with various peripheral equipment, this press is the ideal
choice for manufacturers seeking efficiency, reliability, and precision in
metal stamping.

Features
1.Superior Build and Design
- Welded with high-quality steel plates, shot blasted, and treated to
eliminate internal stress for stable, precise operation.

2.Precision Guidance System
- Four-corner and eight-side long guide rails ensure stability, precision,
and excellent offset load resistance.

3.Enhanced Transmission Components
- Crankshafts, gears, and critical parts undergo tempering and grinding for
superior performance and longevity.
Advanced Safety Systems
- Equipped with a reliable brake release device, double solenoid valve, and
overload protection device to ensure safe operation and emergency stops.

4.Frequency Conversion Speed Regulation
- Allows speed adjustments to meet varied production needs.

5.Flexible Die Adjustment
- Adjustable mold heights accommodate a wider range of stamping tasks,
improving versatility.

6.Integrated Lubrication System
- Centralized automatic lubrication ensures the smooth operation and
longevity of machine components.

7.Superior Stability
- Closed H-frame design provides high strength, rigidity, and precision
compared to C-frame presses.

Specifications
- Tonnage: 110–800 tons.
- Frame Type: H-Frame, high-rigidity welded steel plate construction.
- Drive System: Double crankshaft with reverse rotation for reduced side
forces.
- Slide Guidance: Four-corner and eight-side long guide rails.
- Die Height Adjustment: Electric with digital display.
- Control System: Multi-function microcomputer control.
- Safety Features: Hydraulic overload protection, double solenoid valve,
and intelligent brake system.
- Speed Regulation: Frequency conversion adjustable.

Sales Service
- Guaranty Period: One year for main machine parts (excluding wearing
parts).
- Parts Delivery: Dispatched within three working days via TNT.
- Technical Support: Assistance provided via email or video; overseas
technicians available at additional costs.
- Installation & Commissioning: Technicians can be dispatched for
installation and commissioning, with costs covered by the buyer.

Standard Accessories
- Inverter.
- Touch pad.
- Preset counter.
- Forejudge counter.
- Electrical cam.
- Hydraulic overload protector.
- Slide adjust device.
- Die height indicator.
- Balance device.
- Crank angle indicator.
- Speed indicator.
- Air source receptacle.
- Second fall protection device.
- Misfeed detection device.
- Power socket.
- Maintenance tool box.
- Operation manual.
- Anti vibration press mount.

Optional Accessories
- Pneumatic die cushion device.
- Foot switch.
- Quick die change device(die lifter, clamp and die arm sepjes).
- Slide knock-out device.
- Die room light.
- Safety light sensor.
- Feeder.
- Uncoiler.
- Straightener.
- Mechanism hand.

The GOANWIN D2N Series H-Frame Double Crank Press combines rigidity,
precision, and operational flexibility, making it the ideal solution for
industries requiring reliable and high-accuracy stamping. Contact us today
to learn more or request a tailored solution for your manufacturing needs!

Minimum Order: 1 pieces
