GOANWIN GP H-Frame High Speed Press for Shaded Pole Motor, Motor Core Lamin

Applications
Motor core, Stator and rotor, Semiconductor integrated circuit lead frame,
Range hood shaded pole motor, LED lamp EMC bracket, LEDFN lead bracket,
Signal shield.

Description

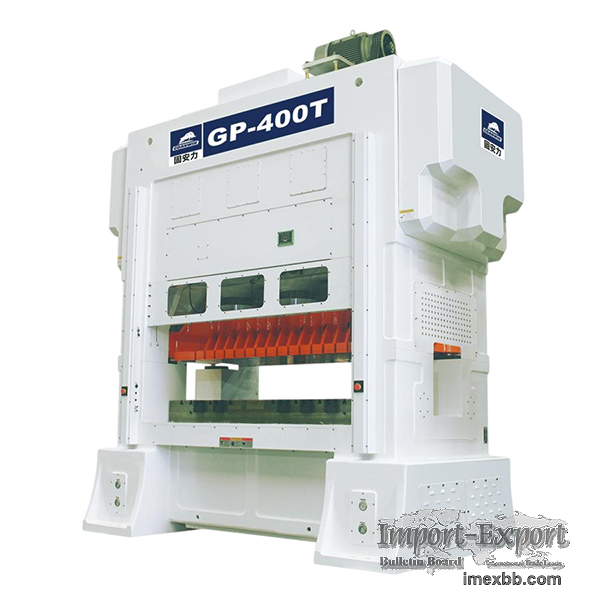

The GOANWIN GP Series H-Frame High-Speed Press is engineered for precision
and high-efficiency metal fabrication, catering to complex processes such
as stamping, bending, and forming. Designed specifically for motor
laminations, stators, and rotors, the GP Series sets a benchmark in
reliability and performance for advanced manufacturing needs.
Built with high-strength ductile iron, the GP Series reduces operational
vibration and noise, ensuring a quieter and more stable working
environment. Its three-section machine body, hydraulically tightened for
enhanced rigidity, minimizes deformation and vibration during high-speed
stamping. The press features an 8-sided needle roller slide guide and
dynamic balance design, guaranteeing exceptional stability and precision
while extending mold life.
The integration of a forced circulation oil supply system with an oil
temperature regulation device further suppresses thermal deformation,
ensuring consistent accuracy of the bottom dead center (BDC) and prolonging
machine life. Equipped with a pressure detection function, the GP Series
provides unparalleled precision, making it the ideal choice for motor core
lamination production and other demanding applications.

Features
1.Extra-Wide Bolster Design
- A maximum width of 3300mm to support intricate and large-scale processing
tasks.

2.High-Rigidity Three-Section Machine Body
- Hydraulically tightened connections minimize deformation and vibration,
ensuring operational stability.

3.Dynamic Balance Design
- Reduces vibration and noise during high-speed stamping, extending mold
life and improving production quality.

4.Advanced Thermal Control System
- Forced circulation oil supply with lubrication and cooling control
suppresses thermal strain, ensuring consistent accuracy of stamped
products.

5.High-Precision 8-Sided Slider Guide
- Ultra-high bearing capacity with long guide rails to handle eccentric
loads effectively, reducing maintenance needs.

6.Straight-Side Double Crank Mechanism
- Optimized for high-speed, high-precision stamping operations.

7.Pressure Detection Function
- Ensures accurate stamping results by monitoring and controlling pressure
levels.

Specifications
- Tonnage: 85-550 tons.
- Application: Motor laminations, stators, rotors, and advanced metal
fabrication
- Table Width: Up to 3300mm
- Slider Guide System: 8-sided needle roller slide guide
- Thermal Control: Forced circulation oil supply with oil temperature
regulation
- Operation Type: Straight-side double crank high-speed press

Sales Service
Guaranty Period: One year for main machine parts (excluding wearing parts).
Parts Delivery: Spare parts dispatched within three working days via TNT.
Technical Support: Assistance provided via email or video; overseas
technicians available at additional costs.
Installation & Commissioning: Technicians available for on-site
installation and commissioning, with costs borne by the buyer.

Standard Accessories
- Die height indicator.
- Manual slide adjusting device .
- Hydraulic die locking device.
- Circulated lubrication system.
- Program logical controller.
- Slide and die dynamic balance device.
- Touch pad.
- Mechanical crank angle indicator.
- Air outlet.
- Air ejector.
- Tool box.
- User manual.
- Anti-vibration press mount.
- Misfeed Detection Device.
- Dynamic balance device.
- Material lubrication device.
- B.D.C Detector.

Optional Accessories
- Automatic feeder.
- Uncoiler.
- Slide knock-out device.

The GOANWIN GP Series H-Frame High-Speed Press stands as a reliable and
innovative solution for manufacturers seeking superior performance in metal
fabrication and motor lamination processes. Its precision engineering,
robust construction, and advanced features ensure efficiency and accuracy
for the most demanding production requirements. Contact us for more details
or to request a customized solution!
