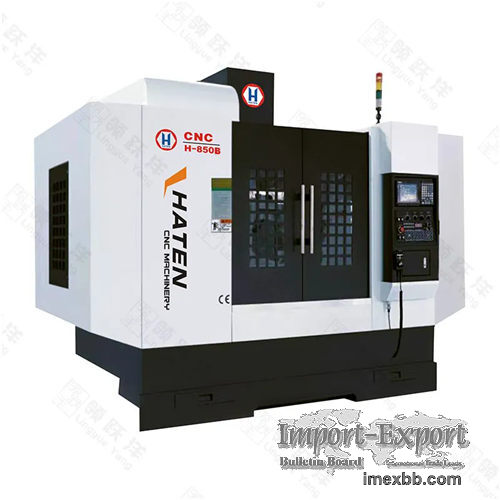

H-1370B 3 AXIS HARD WAY CNC MACHINING CENTER

The main castings of the 3-Axis Hard Rail Series Machining Center machine are
made of resin sand cast iron with stable material to ensure the long-term
accuracy and service life of the machine.
The column is a double wall structure, which greatly improves the mechanical
rigidity.
All slideway surfaces are precisely ground and covered with turcite-b wear-
resistant sheet, which is matched with precision cutting.
The guide rail design is adopted between the z-axis counterweight and the
column to prevent the counterweight from colliding with the column when the z-
axis moves rapidly.
The three-axis adopts the precise ball (roller) screw, which is directly driven
by the servo motor, without backlash error.
H-1370B 3 Axis Hard Way CNC Machining Center Features:
● Select high rigidity precision linear slide with high speed and low noise,
low wear characteristics suitable for precision mold fast parts processing
requirements.
● The main shaft adopts C3 high-precision screw angular ball bearings and
high-strength arrangement structure.
● Driven by AC control servo motor with high torque, low noise and high
stability.
● Powerful cutting capabilities combined with excellent accuracy and
performance make insert and bell hole operation simple.
● Widely used in machining, auto parts, lighting, hardware and other parts
processing industry
Specifications
Item unit H-1370B
Worktable area mm 1500*70
Worktable maximum loading kg 900
T-Slot(slot*width*distance) mm 5-18*14
Spindle nose taper BT BT40/BT5
X/Y/Z axis travel mm 1300/700/700
Distance between spindle end face and worktable end face mm 140-84
X, Y, Z axis gauge specifications Three axis sliding guide
Spindle Speed (Belt type/Direct Connection) rpm 8000/10000
Tool magazine capacity T 24
X/Y/Z axis fast displacement m/min 16/16/1
Cutting feed speed m/min 1-6000
Repeated positioning accuracy mm 土0.003
