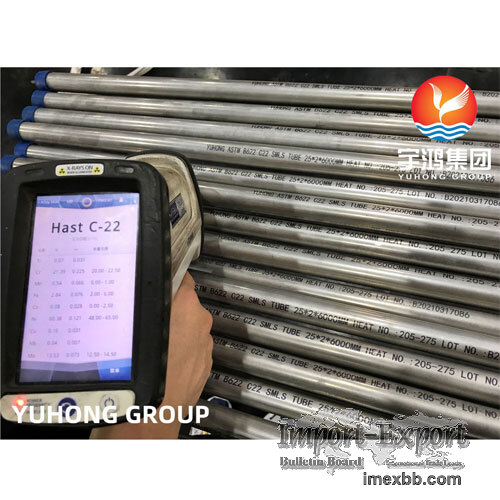

HASTELLOY C-22/NO6022 NICKEL ALLOY PIPE/TUBE

NO6022 Hastelloy C22 Alloy Tube is a metal tube made of nickel-molybdenum-
chromium super alloy with added tungsten. And made with seamless craftsmanship.
The Hastelloy C22 pipe is widely used in applications requiring corrosion
resistance, high temperature, and/or high-pressure properties. You can find the
existence of this nickel alloy tube in the heat exchangers, boilers, and
superheaters. As one of the professional hastelloy c22 pipe suppliers in China,
Yuhong Group provides quality Hastelloy C22/UNS N06022 tubes at great prices.
Feel free to contact!

HASTELLOY ALLOY C22 PIPE SPECIFICATION

Steel Grade N06022, N10276 Type Seamless
Standard ASTM, AISI, GB, DIN, JIS Certification ISO, SGS, BV,
ISO/CE/SGS
Length 15000mm Max, Customized Thickness 0.508-50.8mm
Technique Cold Rolled, Cold Drawn Min./Avg. Avg.
Outer Diameter 6.35-406.4mm, Customized Finish Brush Polish Cold
Drawn, Pickled, Bright Annealed

UNS N06022 NICKEL ALLOY C22 PIPE PROPERTIES

Chemical Composition C Mn P S Si Cr Ni
Mo Fe
N06022 0.015 0.50 0.020 0.02 0.08 20-22.5 Balance 12.5-14.5
2-6

HASTELLOY ALLOY C22 TUBE HIGHLIGHTS
Hastelloy C22, also known as Alloy C22, is a general-purpose austenitic nickel-
chromium-molybdenum-tungsten alloy with enhanced resistance to pitting, crevice
corrosion, and stress corrosion cracking. The high chromium content provides
good oxidation resistance, while molybdenum and tungsten content provides good
reduction resistance. This nickel steel alloy also has excellent resistance to
oxidative aqueous media, including wet chlorine and mixtures of nitric or
chloride-containing oxidizing acids.

Other Corrosives Hastelloy C22 is resistant to oxidizing acid chlorides, wet
chlorine, formic and acetic acids, ferric and copper chlorides, seawater,
brine, and many mixed or contaminated organic and inorganic chemical solutions.
This nickel alloy also has the best resistance to environments that encounter
reducing and oxidizing conditions in the process stream. This is beneficial for
multi-purpose plants where this "restless" situation often occurs.

We provide hastelloy c22 tube, hastelloy c pipe, steel fitting, steel tube
fitting, etc. For more information, please feel free to contact us!
