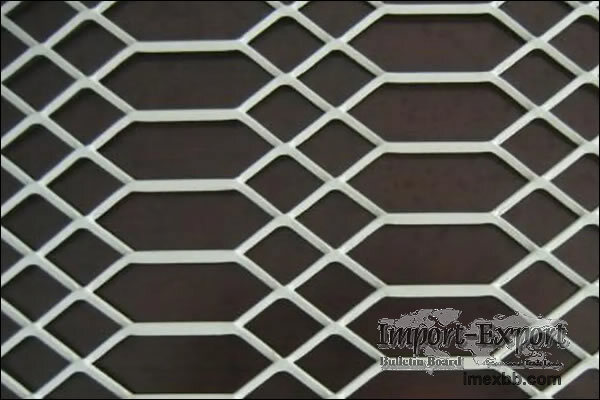

Hexagonal Opening Expanded Mesh

Expanded Mesh, Hexagonal Opening:
Thickness : 0.5mm to 8mm
Width : up to 2.5M
Material of Expanded Metal Mesh: Carbon steel, aluminum metal, stainless steel
metal, nickel metal and so on.

Uses of heavy type hexagonal opening expanded mesh: Fencing for road, railway,
civil building, water conservancy's construction; protecting of all kinds of
machines, electrical equipment, window and aquatic product's breeding

standard hexagonal expanded metal mesh.
Long diagonal = 6.0mm
Short diagonal = 3.5mm
Pass =1.0mm
Thickness = 0.6mm

standard square hole
Long diagonal = 4.0mm/6.0mm
Short diagonal = 2.9mm/4.5mm
Pass= 0.6mm/0.6mm
Thickness = 0.6mm/0.6mm

Galvanized expanded metal lath rolls, hexagonal opening shape 12x35mm, weight:
1.5 kg /m², width: 1m, length 15m
GI welded wire mesh, opening 25x25mm, wire dia. 1.2mm, size: 1.2x30 meters.

Fine expanded titanium mesh:
a. 0.6 mm thick in hexagonal design with mesh size 1 x 2 mm and 1.5 x 2 mm
b. Same as (a) but in diamond shape if you have it
