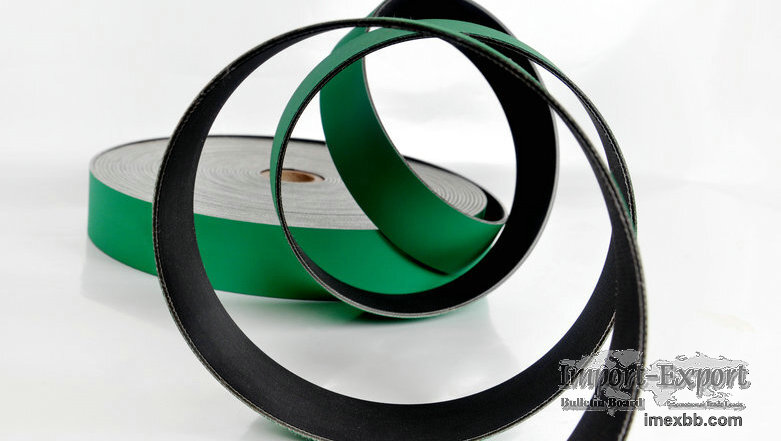

High Efficiency Tangential Belt

A high-speed tangential belt, also known as a polyamide-based high-speed drive
belt, is a new type of flat belt, with high strength nylon core as the skeleton
material. and as the tensile layer, and with high wear-resistant synthetic
rubber as the surface friction layer. Using mature joint technology, so the
operation is relatively stable. It is widely used in precision machine tools
and high-speed transmission machinery.

Properties Of High-Efficiency Tangential Belt
High efficiency and low elongation

High fatigue resistance and flexibility

Good anti-static property

The friction coefficient of stability

Specification Of High-Efficiency Tangential Belt
Type Thickness（mm) Minimum pulley diameter (mm) Extend the tension by
1%(N/mm)
  Maximum tension(N/mm) Core thickness(mm)
DH-15 1.5 25 3.5 9 0.4
DH-18 1.8 35 4.5 12 0..6
DH-22 2.2 60 7.5 17 1.0
DH-24 2.4 70 9.0 23 1.0
DH-25 2.5 70 17.0 47 1.0
DH-30 3.0 100 11.0 25 1.2
DH-31 3.1 150 15.0 38 1.5
DH-34 3.4 150 15.0 38 1.5
DH-38 3.8 180 17.0 38 1.5

Application Of High-Efficiency Tangential Belt
High speed tangential belt is especially suitable for high speed transmission
in textile industry, such as air suction, air spinning, carding machine,
twister, stretch yarn machine, covering yarn machine, extra-long ring spinning,
fancy twisting machine, knitting machine and so on.
