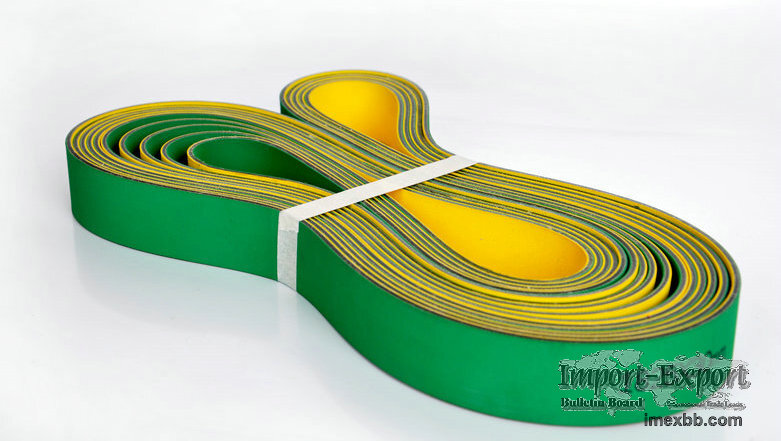

Nylon Flat Belt

Nylon sandwich flat belt belongs to high-speed drive belt with innovative and
unique material structure. As a professional nylon belt manufacturer, we can
offer a rubber nylon sandwich transmission belt and leather nylon core
transmission belts. Benefit from our long-term research and development, we
have mastered mature manufacturing technology and formula. In the meantime, we
use imported nylon base and internationally advanced equipment, which result in
the great properties of our nylon flat belt.

Properties Of Nylon Flat Belt
Strong wear resistance and fatigue resistance

High tensile strength and high efficiency

Future resistance and low elongation

Cost-effective and long service life

Anti-static and low noise

Lightweight and oil resistant

Specification Of Nylon Flat Belt

Type Extend the tension by 1% Minimum pulley diameter
(mm) Maximum tension（N/mm) Tensile strength （N/mm)
Thickness（mm) Strength layer material
Elongation of installation Cladding material Permanent
antistatic Working Temperature(℃) Friction
coefficient Interface Width（mm)
ST12 3.5 20 9 140 1.2 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
ST15 5 40 12 200 1.5 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
ST17 5 50 12 200 1.7 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
ST20 7.5 75 18.5 200 2.0 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
ST23 10 100 25 340 2.3 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
ST25 12.5 125 32 400 2.5 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
ST30 12.5 125 32 400 3.0 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
ST32 15 150 37.5 600 3.2 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
ST35 15 150 37.5 600 3.5 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
ST40 17.5 175 43.5 700 3.8 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
P0 2.5 20 6 80 1.2 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
P1 5 50 12 200 1.5 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
P2 7.5 75 18.5 300 1.8 PA 1.5-2.5 XNBR +
-20- +100 0.7 T 520
LL1 5 50 12 200 3.7 PA 1.5-2.5 NBR //
-20- +100 0.3 T 400
LL2 7.5 75 18.5 300 4.0 PA 1.5-2.5 NBR /
-20- +100 0.3 T 400
LT1 5 50 12 200 2.7 PA 1.5-2.5 NBR /
-20- +100 0.3 T 400
LT2 7.5 75 18.5 300 2.9 PA 1.5-2.5 NBR /
-20- +100 0.3 T 400
LT4 7.5 75 18.5 300 4.5 PA 1.5-2.5 NBR /
-20- +100 0.3 T 400

Applications Of Nylon Flat Belt
It is widely applied for machinery with compact transmission mechanisms, high
linear speed, and a large speed ratio.

1). Applied as tangential drive belt including rotor spinning frame, double
twister, texturing machine, pile twister, hairdryer, etc.

2). Applied as spindle belt and flat belt for parallel or double side drive
including carding machine, roving frame, spinning machine, drawing frame,
circular knitting machine, etc.

3). For transmission flat belts of leather and nylon core, they are
particularly applied for overload or cross drive.

4). Applied on the loom as transmission flat belt and brown belt.

It is specially used under harsh environments such as oil pollution, as
transmission flat belts for large and medium-sized machinery such as paper
machines, ventilators, mixers, rolling mills, turbines, marble cutting
machines, pumps, etc.

Dehai Youli is a professional silicone rubber products manufacturer, we provide
eva film glass, eva interlayer film for laminated glass, eva film for laminated
glass and etc. Want to know more? Please contact us.

Minimum Order: 1 packs
