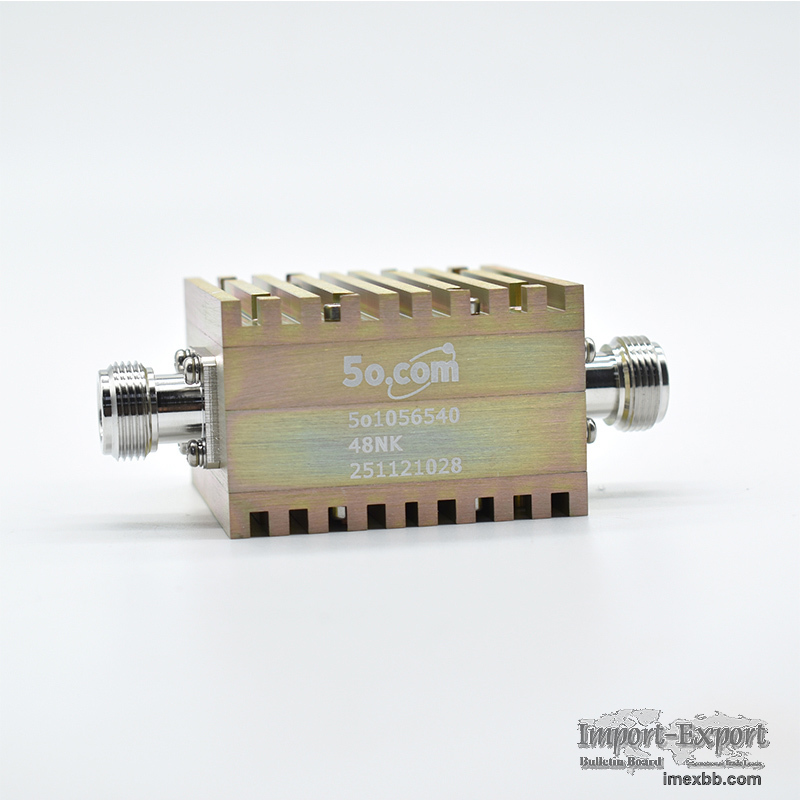

High Power 300W 4.0 to 8.0GHz RF Coaxial Circulator

Model Number:5o105654048NK
Frequency Range:4.0~8.0GHz
Insertion Loss:0.6dB
Isolation:16dB
VSWR:1.4
Forwar , d Power:300W
Reverse Power:300W
Connector Type:N Female
Temperature:-30 ~+70℃
Dimension:56*54.3*36mm

Applicati , on
RF power amplifier protection.
Digital, Satellite, Mobile Communication.
Medical, Communication, Security.
Military, Space and Commercial applications.

It can be dual junction or even three for high isolation.
Built to the rigorous standards required for commercial implementations,
military and space.
Custom design is available upon request.
Standard guaranteed for one year.

5o.com Inc. is a modern high-tech enterprise specializing in passive RF and
microwave components, integrating R&D, production, and sales. The company
focuses on technological innovation as its core and relies on technology
leadership.
The company's main products: Microwave RF isolators, circulators, coaxial
terminations, coaxial attenuators, power splitters/dividers, waveguide to
coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers
and other microwave passive components.

Minimum Order: 1 pieces
