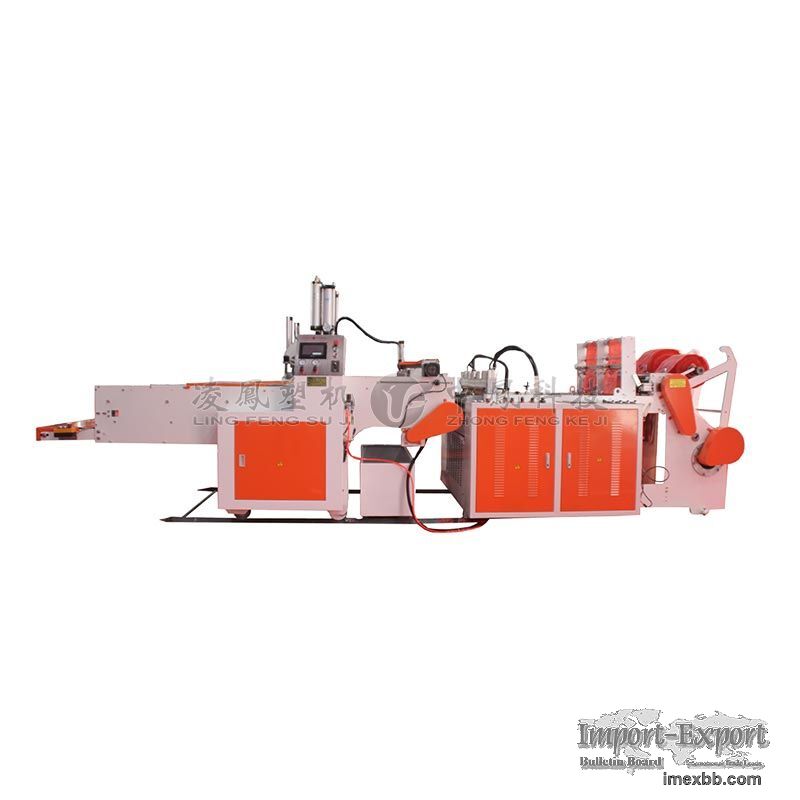

High Speed full-automatic Double Line T-shirt Bag Making Machine

High Speed full-automatic Double Line T-shirt Bag Making Machine
Feature and Advantage
1. Human touch screen, simple operation. Bag length & speed can be changed
easily from touch screen.
2. Adopted patented unwind stand for avoiding tension stretching plastic film
3. Unwind Stand equipped with inverter system for jumbo reels reduced the time
and the number of employees of change roller.
4. Equipped with specialized pneumatic Expandable Scroll fastens the film
roller, easy operation
5. Servo control step setting length system reduces the sealing-cutting
dimensions errors during high-speed production and electric consumption.
6. Hot cutter heating independently separated with hot sealing
7. Cutter and sealing knife "90°turnover" device and heating cloth roll
design, easy for clean and maintenance, also ensure the safety.
8. High-speed take-off shifter device makes bags output smoothly and fast.
9. Adopted patented swing device avoided hot sealing position sticking
together
10. The machine adopted plugging type IC circuit auto-controlled system for
easy replacement.
11. Servo-motor accurately control Robot hand moment position
12. In-line automatic punching machine use air pressure to push oil hydraulics
without noise

Technology Parameter
Model No. LF-HDFP-350x2 LF-HDFP-450x2 LF-HDFP-500x2
The max width of the bag (mm) 350 450 500
The length of the bag (mm) 280-650 300-750 350-900
Bag making speed (pc/min) 100-300 100-300 100-300
Film thickness (mm) 0.02-0.08 0.02-0.08 0.02-0.08
Total power/Work power (kw) 16.28/3.4 19.8/4.2 24.3/4.6
Gas consumption (m3/min) 0.6 0.7 0.7
Bag making roll quantity (roll) 2 2 2
Dimensions(LxWxH mm) 5810x1580 x1950 6010x1780x1950 6510x1980x1950
Weight (kg) 2376 2764 3246
Main motor power (kw) 1.5 2.2 2.2
Conveyer inverter power (kw) 4 x0.75 4 x0.75 4 x0.75
Inverter quantity (sets) 5 5 5
Servo motor power (kw) 3.8 4.4 4.4
Servo motor quantity (sets) 3 3 3
Pressure Cylinder Model KPB-80-165-20-5T KPB-80-165-20-5T KPB-80-
165-20-5T
Pressure Cylinder 2 2 2
Work voltage (V) AC 220v AC 380v AC 380v

Configuration Details of High-Speed Bag Making Machine
Charging Type Electric
Loading Motor WUHUDELI, Chinese Famous Brand
Loading Frequency Converter INOVANCE, Chinese Famous Brand
Charging Shaft Special Expanded Shaft
Conveyer Motor Chinese Famous Brand
Conveyer Inverter INOVANCE, Chinese Famous Brand
Conveyer Roller Special Rubber
PLC Operation System & Touch ScrewPLC Chinese Famous Brand
Feeding Roller Special Rubber
Feeding Servo Motor INOVANCE, Chinese Famous Brand
Feeding Servo Driver INOVANCE, Chinese Famous Brand
Host Motor WUHUDELI, Chinese Famous Brand
Host Motor Inverter INOVANCE, Chinese Famous Brand
Photoelectric PANASONIC, JAPAN
Electric Relay OMRON, JAMPAN
Heat Sealing Knife Alloy Copper
Heat Cutter Alloy Steel
Heating Method Heat Sealing and Heat Cutting separately heating
Temperature Controller OMRON, JAMPAN
Electric Relay OMRON, JAMPAN
Static Elimination Device One Static Chamber and Two Static Bars
Cross-flow Fan Chinese Famous Brand
Bag Output Orderliness Device Soft Rubber Whip
Bag Transferer & Folding Device Automatic Robot Hand Controlled by Servo Motor
Robot Hand Open-closed ways Pneumatic
Cylinder AIRTAC, TaiWan
Output Convey Belt PVC Plastic
Punching Pressure Cylinder Chinese Famous Brand
Punching Cutter Customization Specification, Alloy Steel
Punching Subplate Auto-transposition, Nylon Material
Robot Hand Servo Motor INOVANCE, Chinese Famous Brand
Robot Hand Servo Driver INOVANCE, Chinese Famous Brand
