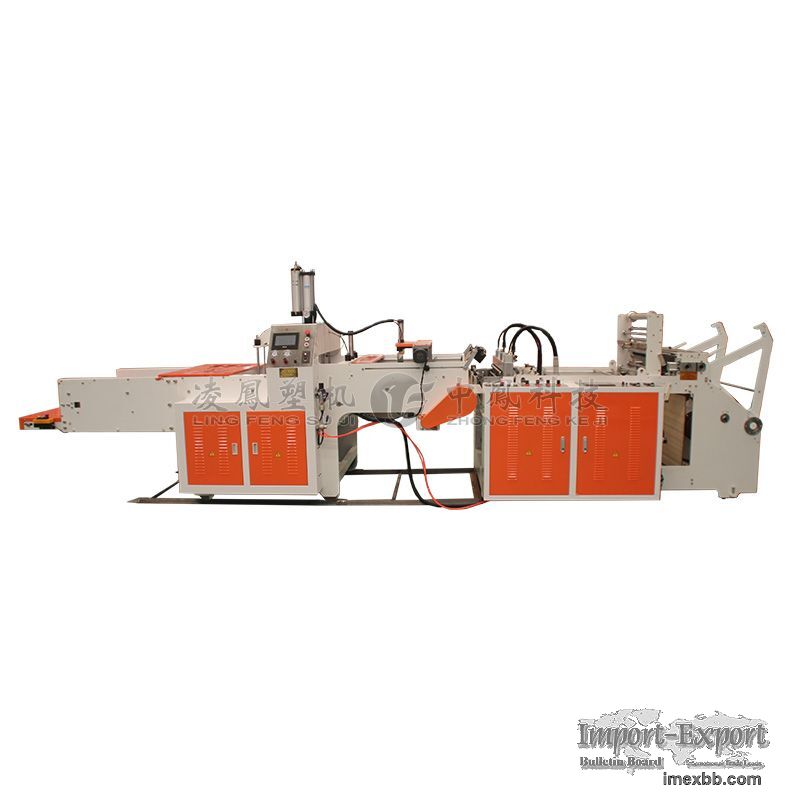

High Speed Full-automatic Single Line Sealing T-shirt Bag Making Machine

High Speed Full-automatic Single Line Sealing and Cutting Independent Heating
T-shirt Bag Making Machine

Feature and Advantage
1. Human touch screen, simple operation. Bag length & speed can be changed
easily from touch screen.
2. Adopted patented unwind stand for avoiding tension stretching plastic film
3. Unwind Stand equipped with inverter system for jumbo reels reduced the time
and the number of employees of change roller.
4. Equipped with specialized pneumatic Expandable Scroll fastens the film
roller, easy operation
5. Servo control step setting length system reduces the sealing-cutting
dimensions errors during high-speed production and electric consumption.
6. Hot cutter heating independently separated with hot sealing
7. Cutter and sealing knife "90°turnover" device and heating cloth roll
design, easy for clean and maintenance, also ensure the safety.
8. High-speed take-off shifter device makes bags output smoothly and fast.
9. Adopted patented swing device avoided hot sealing position sticking
together
10. The machine adopted plugging type IC circuit auto-controlled system for
easy replacement.
11. Servo-motor accurately control Robot hand moment position
12. In-line automatic punching machine use air pressure to push oil hydraulics
without noise

Technology Paramete of Full-Automatic Bag Making Machine
Model No. LF-HSFP-650 LF-HSFP-1000
The max width of the bag (mm) 650 1000
The length of the bag (mm) 350-1000 450-1200
Bag making speed (pc/min) 100-250 100-240
Film thickness (mm) 0.02-0.08 0.02-0.08
Total power/Work power (kw) 12.11/2.9 14.4
Gas consumption (m3/min) 0.6 0.7
Bag making roll quantity (roll) 1 1
Dimensions(LxWxH mm) 6500x1450x1950 6600x1670x1890
Weight (kg) 2480 2476
Main inverter power (kw) 1.5 1.5
Conveyer inverter power (kw) 0.75 0.75
Inverter quantity (sets) 3 3
Servo motor power (kw) 3.8 4.4
Servo motor quantity (sets) 2 2
Pressure Cylinder Model KPB-80-165-20-5T KPB-80-165-20-5T
Pressure Cylinder 1 1
Work voltage (V) AC 220V AC 380V
