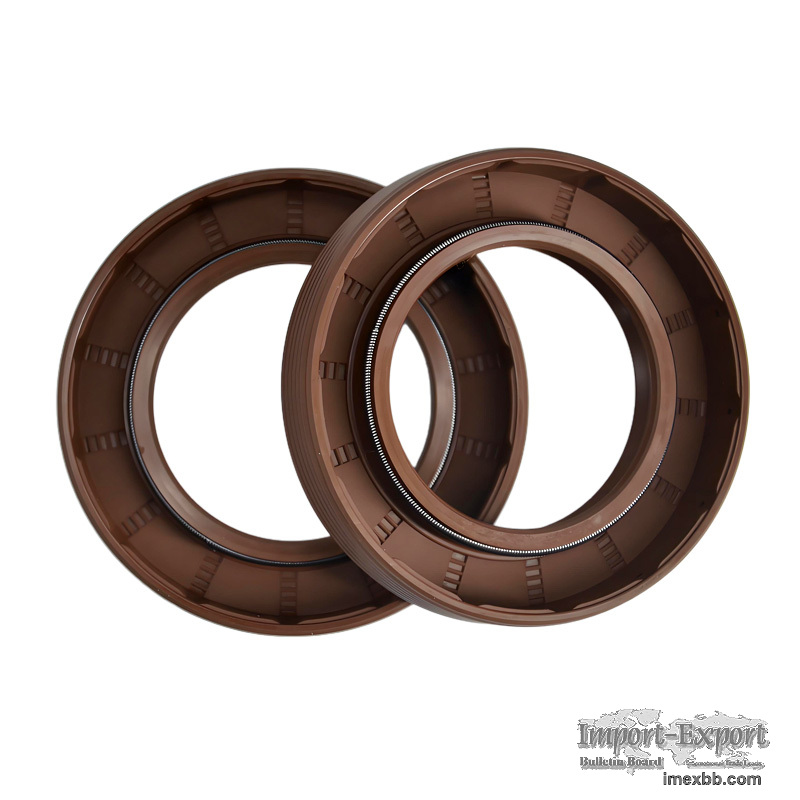

High‑Performance Oil Seals with Optimized Lip‑to‑Shaft Interference

In the sealing industry, the key to ensuring an oil seal performs optimally
lies in its fit against the shaft. The interference fit of the oil seal lip
—essentially the slight difference between the seal's internal diameter and
the shaft diameter—determines how tightly the seal grips the shaft. This
parameter is crucial in establishing the correct sealing pressure and
ensuring long-term durability.

Why Does the Interference Fit Matter?

The interference fit, often referred to as the "press-fit," influences two
main aspects of oil seal performance:

Sealing Efficiency: The seal’s ability to form a stable contact with the
shaft is determined by this fit. A proper interference ensures that the lip
maintains constant pressure, creating an effective barrier against leaks.

Wear and Durability: Too much interference increases friction and heat,
causing the seal lip to wear out prematurely. Too little interference may
lead to inadequate sealing, resulting in leaks and performance issues.

How Much Interference Is Required?

The amount of interference required depends on several factors, including
the material of the oil seal, the operating conditions (speed, temperature,
and load), and the surface finish of the shaft. There is no one-size-fits-
all value, but generally, the interference range can be broken down into
several common categories based on usage:

Standard Applications (NBR, FKM): Typically, the interference is between
0.20 mm to 0.50 mm. This range works well for typical sealing conditions
where temperature and speed are within normal limits.

High-Speed or High-Temperature Equipment: For environments where
temperatures are higher or rotational speeds are faster, the interference is
usually reduced to between 0.15 mm to 0.35 mm. This helps prevent excessive
heat generation and wear on the seal lip.

Low-Speed, Heavy-Duty, or Rough-Surfaced Shafts: In applications involving
higher loads or rougher shaft surfaces, a larger interference range of 0.40
mm to 0.60 mm is more suitable. This ensures better contact between the lip
and shaft, providing a more stable seal.

Why Are Interference Values Not Fixed?

It’s important to note that the interference fit is not a universal
standard—it's highly dependent on the specific application. Factors like
the shaft’s surface finish (rough or smooth), the operational temperature,
the type of seal material, and even the type of fluid being sealed can all
influence the optimal interference value.

For instance:

High-Speed Motors: These tend to generate more heat, so a smaller
interference is necessary to reduce friction and prevent overheating.

Heavy-Duty Industrial Equipment: Rough shaft surfaces and high loads may
require a larger interference to ensure the seal lip holds steady.

Automotive Engines: With higher shaft precision and optimal lubrication, a
smaller interference fit can be used to reduce friction losses.

How to Determine the Right Interference Fit?

Choosing the correct interference fit requires an understanding of a few key
factors:

Rotational Speed: High-speed applications demand a smaller interference to
minimize friction. Conversely, lower-speed applications may benefit from a
larger interference.

Shaft Surface Finish: A rougher surface (Ra ≥ 0.8) usually calls for a
higher interference to ensure a proper seal. A smoother surface (Ra ≤ 0.4)
might require less interference.

Temperature: Higher temperatures harden the material, which can necessitate
a more carefully controlled interference fit.

Seal Material: Different materials behave differently under stress. For
example, nitrile rubber (NBR) seals, which have good elasticity, typically
tolerate a broader range of interference, while fluorocarbon (FKM) seals,
which stiffen at high temperatures, require a smaller interference.

While there is no fixed interference value for all applications, a general
range of 0.20 mm to 0.50 mm serves as a reliable guideline for most standard
applications. Always ensure the fit is tailored to the specific operational
environment of the equipment, taking into account the material, speed,
temperature, and surface condition. This approach will guarantee not only
effective sealing but also a longer lifespan for your oil seals.
