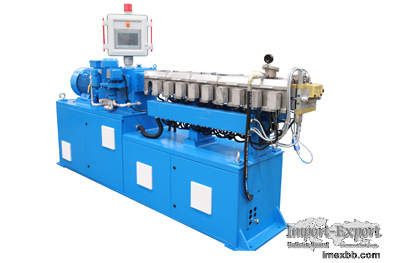

HK Series Co Rotating Twin Screw Extruder

HK Series Co Rotating Twin Screw Extruder

Nanjing KY provides more material selections for the process parts of the HK
Series Twin screw extruder. Besides standard nitriding steel and tool steel,
the HIP materials made in China also provide higher wear resistance for
machines. Different corrosive powder metallurgy materials are also applied to
screw element and cylinder bushing manufacture, and their properties are very
close to the same.

Nanjing KY provides more material selections for the process parts of the HK
Series Twin screw extruder. Besides standard nitriding steel and tool steel,
the HIP materials made in China also provide higher wear resistance for
machines. Different corrosive powder metallurgy materials are also applied to
screw element and cylinder bushing manufacture, and their properties are very
close to the same.
Your Premier Twin Screw Extruder Manufacturer——KY

HK Series Twin screw extruder process components, such as screw and cylinder,
can be interchanged with AK or SK specifications, and the geometric design is
completely consistent. This also means that customers of Nanjing KY AK or SK
can seamlessly transfer the original products to newly purchased HK equipment,
to achieve higher output or better return on investment.

HK Series Twin screw extruder is a medium-high torque and high-speed extruder
launched by Nanjing KY in recent years to meet the new needs of customers. It
has gained a huge market share and currently produces more than 120 extruders
annually.

HK transmission system including large extruder production system based on
Nanjing KY independently developed high-torque gearbox adopts the leading
transmission technology in the industry, strengthens the output system of the
gearbox with enhanced structure, achieves the ideal result of pure torque
output with parallel biaxial output, and greatly improves the safety of
gearbox. The transmission parts can be manufactured by German or British torque
limiter so that gearboxes and process parts can be safely protected when the
torque exceeds the standard.

Parameter of HK Series Co-rotating Twin Screw Extruder

HK Series Co-rotating Twin Screw Extruder Model Production Capacity kg/hr
(Reference Value)
Material Process Category Typical Material HK26 HK36 HK53
HK63 HK73 HK96 HK136
Filling modification PE, PP, EVA, etc. + calcium carbonate, talcum powder,
titanium dioxide 5~10 40 ~ 80 130 ~ 260 260 ~ 460 500 ~
700 1000 ~ 1300 1500 ~ 2300
ABS, PC, PS, etc. + aluminum hydroxide, magnesium hydroxide, antimony
oxide
PP, PA, ABS, etc. + iron powder, magnetic powder, ceramic powder
10 ~ 20 80 ~ 120 160 ~ 260 330 ~ 460 600 ~ 800 1200 ~
1600 1500 ~ 2600
Blending modification PP, PE, PS + SBS; PP, PA + EPDM; PP + NBE; EVA +
silicone rubber etc 5~ 10 50 ~ 100 130 ~ 210 230 ~ 390
450 ~ 650 900 ~ 1400 1400 ~ 2600
PE, PA, PC, CPE + ABS; ABS + TPU; PBT + PET; PP + PE etc 5~ 10
40 ~ 80 100 ~ 210 230 ~ 330 400 ~ 500 850 ~ 1300 1000 ~
2600
Color masterbatch PE, PP, ABS, EVA, PS, etc. + pigments and other
additives 3~ 8 50 ~ 70 130 ~ 200 230 ~ 310 300 ~ 450
800 ~ 1000 800 ~ 1600
Functional masterbatch Degradable masterbatch: PE, PS, etc. + starch, etc.
3~ 8 40 ~ 80 120 ~ 200 200 ~ 290 300 ~ 450 800 ~ 1000
800 ~ 1600
Flame retardant masterbatch: PP, PA, ABS, PBT, etc. + flame retardant
and other additives 3~ 8 50 ~ 90 130 ~ 230 260 ~ 390 450 ~
650 1000 ~ 1400 1300 ~ 2300
Double anti-master batch: PE + anti-fog dripping agent, stabilizer,
etc. High heat preservation masterbatch; Cooling masterbatch; Rheological
modified masterbatch 3~ 8 50 ~ 70 90 ~ 130 230 ~ 310 350 ~
450 800 ~ 1000 800 ~ 1600
Carbon black masterbatch: PE, EVA, ABS, etc. + carbon black 3~ 8
30 ~ 50 80 ~ 130 200 ~ 290 300 ~ 450 700 ~ 900 800 ~
1300
Reinforced modification of glass fiber (carbon fiber) PP, PBT, ABS, AS, PA6,
PA66, PC, POM, PPS, PET, etc. + long fiber or short fiber or whisker 5~ 10
70 ~ 100 160 ~ 230 260 ~ 390 400 ~ 600 800 ~ 1200
1300 ~ 2100
PP, PBT, ABS, AS, PA6, PA66, PC, POM, PPS, PET, etc. + carbon fiber
5~ 10 40 ~ 80 130 ~ 210 230 ~ 390 300 ~ 450 800 ~ 1000
900 ~ 1800
Special materials EVA hot melt adhesive, polyurethane 3~ 8 40 ~ 80
80 ~ 120 130 ~ 200 250 ~ 300 600 ~ 700 600 ~ 1300
Fluorine rubber 3~ 8 30 ~ 50 50 ~ 100 130 ~ 200 200 ~
250 500 ~ 650 600 ~ 1200
Cable coating material, acetate fiber, pp cigarette filter material
3~ 8 40 ~ 80 130 ~ 200 260 ~ 330 400 ~ 500 1000 ~ 1300
1300 ~ 2100
TPR sole 3~ 8 80 ~ 130 200 ~ 260 390 ~ 460
600 ~ 700 1200 ~ 1400 1300 ~ 2600
Luminescent plastics, antibacterial plastics, anti-ultraviolet
plastics, PE crosslinkable pipe materials 3~ 8 50 ~ 80 160 ~ 230
290 ~ 390 450 ~ 500 800 ~ 1000 900 ~ 1600
All kinds of cable materials HDPE, LDPE, LLDPE, MDPE insulation material,
sheath material; PE radiation crosslinked cable material; PE Silane Crosslinked
Cable Compound 3~ 8 40 ~ 80 130 ~ 200 230 ~ 330 400 ~ 500
650 ~ 900 900 ~ 1400
Flame retardant polyolefin cable compound, PP cable compound 3~ 8
80 ~ 100 160 ~ 230 330 ~ 390 500 ~ 600 1000 ~ 1200
1000 ~ 1600
Low Smoke and Low Halogen Flame Retardant PVC Cable Material 5~ 10
30 ~ 50 100 ~ 160 200 ~ 260 300 ~ 450 700 ~ 850 800 ~
1300
Reactive extrusion Polyamide polycondensation, polyester melt
polymerization, polyurethane addition polymerization, polycarbonate
polycondensation, polyformaldehyde bulk continuous polymerization 1~ 2
25 ~ 45 130 ~ 200 260 ~ 330 400 ~ 500 650 ~ 800 600 ~
1300
After treatment of exhaust devolatilization Chlorinated polypropylene,
superabsorbent resin, K-resin, chlorosulfonated polyethylene, fluororubber, etc
1~ 2 Max65 Max130 Max260 Max400 Max800 Max1300
Powder coating Polyester type, epoxy type, propyl ester type, polyurethane
type, acrylate type, etc. 3~ 8 130-~ 200 260 ~ 390 520 ~
650 900 ~ 1000 1800 ~ 2000 2000 ~ 4000

KY is a professional extruder machine manufacturer, we provide small extruder
machine, pe extruder machine, small extruder for sale, pvc extruder for sale,
extruder machine for sale and etc. Want to know twin screw extruder machine
price? Please contact us.
