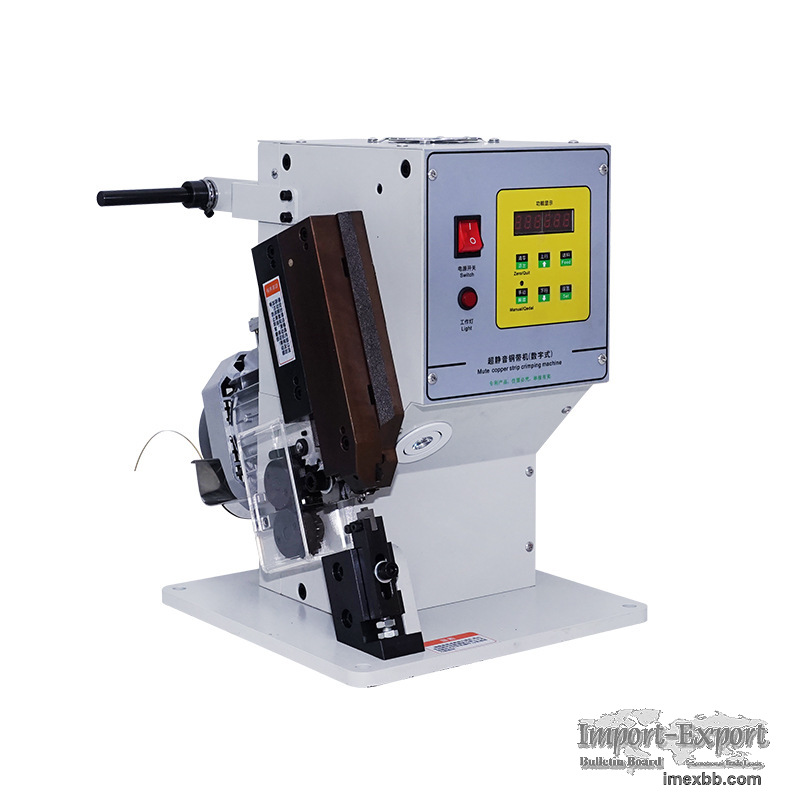

HL-04MD Ultra Silent Copper Strip Crimping Machine

Voltage:AC220/60HZ
Motor Power:750W/RV63/1;15
Crimping Force:2.5T
Copper Strip Feeding Mode:Motor Drive / Step Feeding
Maximum Copper Strip Length:60MM/Maximum Copper Strip Length 22MM
Maximum Copper Strip Width:6MM
Maximum Crimping Width:6.5MM
Maximum Crimping Diameter:6mm2 X 2
Operation Mode:Pedal Switch / Single Action
Overall Size:300 X 300 X400 (MM)
Technical Characteristics:
1: This machine is equipped with 750W motor and RV63 reducer, and it has a
large crimping force because of the large torque with a 40 percent increase
over the traditional machines!
2: The three axles through-type spindle mounting method, front and back
supporting, concentric axles without gap, keeps the crimping force much firmer!
3: The motor drive step feeding and digital length setting ensure the easy and
quick adjustment and more stable wire feeding!
4: The diameters of main axle and eccentric shaft are expanded to lead the main
axle to have better intensity and be more durable!
5: The optimized box structure with the machine head in the box, has stronger
bearing strength than the traditional machines in which four screws are used to
connect the machine head to the middle base!
6: The working height is reduced to the height of the operator’s fist, to
reduce the operating fatigue degree benefiting from the supporting of machine
base when working.

Minimum Order: 1 pieces
