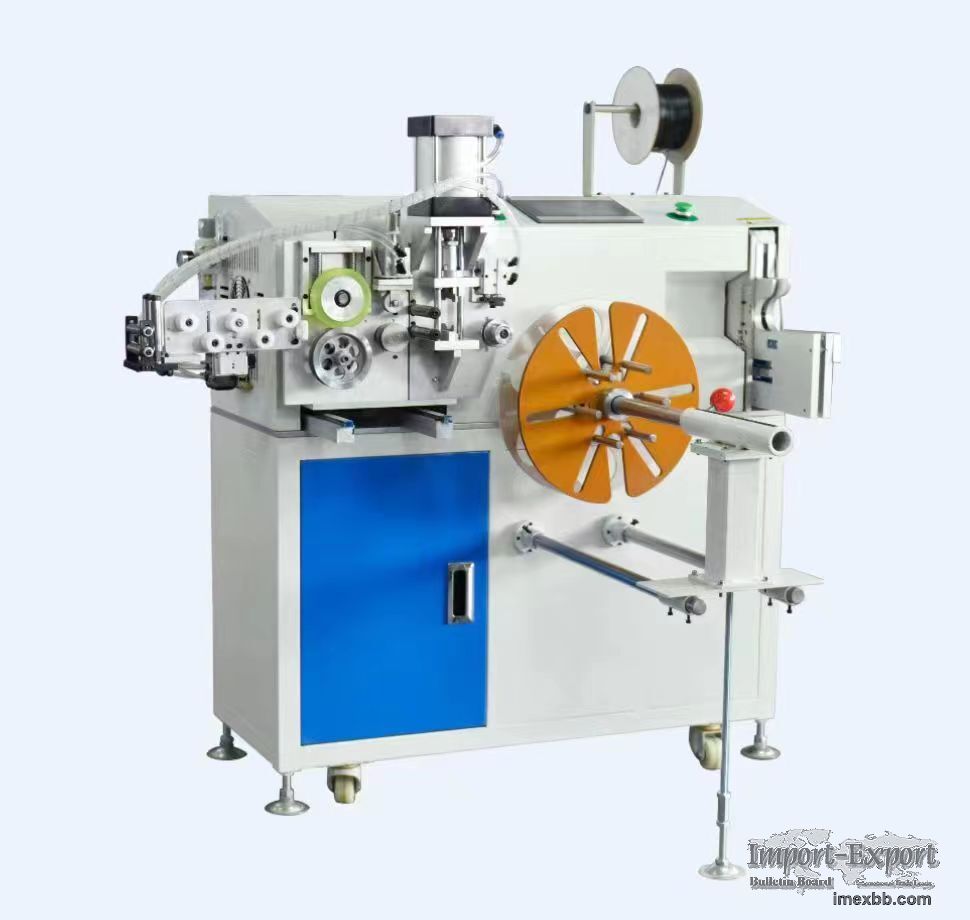

HL-425 Floor-standing automatic meter-counting wire winding and tying machi

Inner diameter range of winding:50-200mm
Winding meters or turns:Adjustable
Applicable to cable tie length range:120-190mm
Twisting turns:adjustable
Applicable to bundling position diameter range:18-45mm The inner diameter of
the bundled coil must be ≥75
Band width range:Iron core rubber-coated band <1mm thick * 3.9mm wide
Special widths can be customized by consultation
Input voltage:AC220V 50HZ/60HZ (special voltage can be customized)
Rated power:<500W
Load:3 kg weight 150KG
Volume:L1000×H1140, excluding cable tie bracket 160mm high
Winding speed
Standard disc diameter 320MM:1-13 turns/second Binding speed: 0.6 seconds/time
The following 4 discs are optional:220/280/320/350
Axis diameter:50-200 according to the outer disc size (the finished product
cannot exceed the winding disc)
Axis length:Wire diameter Number of wires + 1mm margin

Minimum Order: 1 pieces
