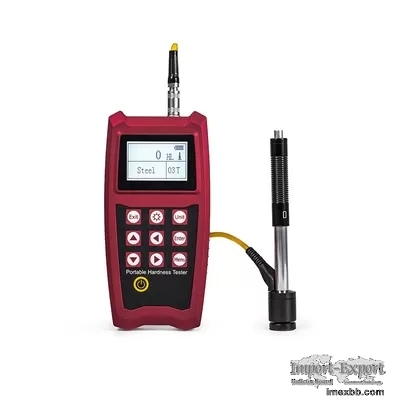

HL HRC HRB LEEB Hand Held Hardness Tester 600 Groups Data Memory

Product Description

HL HRC HRB LEEB Hand Held Hardness Tester 600 Groups Data Memory



High-End Model, 3 Years Warranty, Portable Hardness Tester



Functions & Features



● High quality and precision.

● Automatically identify 7 types of Impact devices for special application.

● Freely switch to hardness scales HRA, HRB, HRC, HV, HB, HS, HL.

● Direct calibration on HL, HRC, HB.

● PC Software for data transmission, analysis, and measurement reports printing.

● Test at any angle, even upside down.

● Large LCD screen with back-light, showing all functions and parameters.

● Upper and lower limit and sound alarm.

● Conversion to tensile strength (U.T.S).

● 3 years warranty and life-long services.



Measuring Materials



● 10 types of metals: steel and cast steel, alloy tool steel, stainless steel,
gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys, copper
and tin alloy, copper, forged steel.



Technical Parameters



Model Uee910
Measuring Range
(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-104 , 2)HV,(30.6-102.6)HS,

(13.5-101.7)HRB, (59.1-88)HRA

Hardness parameter HL, HRC,HRB, HRA, HS, HB, HV
Accuracy ±6HLD
Memory 600 groups
PC Connection Available
Battery 2*AA
Operating Temperature -20℃~+60℃
Dimensions 163×78×33mm
Weight 240g
Standard Configuration

Main unit, Impact Device type D, Calibration block, Small supporting ring, USB
cable, Software, Backup accessories(Impact ball*1, Cable*1, Spanner

*1), Cleaning brush, Operation manual, Certificate.

Optional Accessories Optional Impact Devices(D,DC,DL,D+15,G,C,E), Shaped support
rings, Testing blocks
