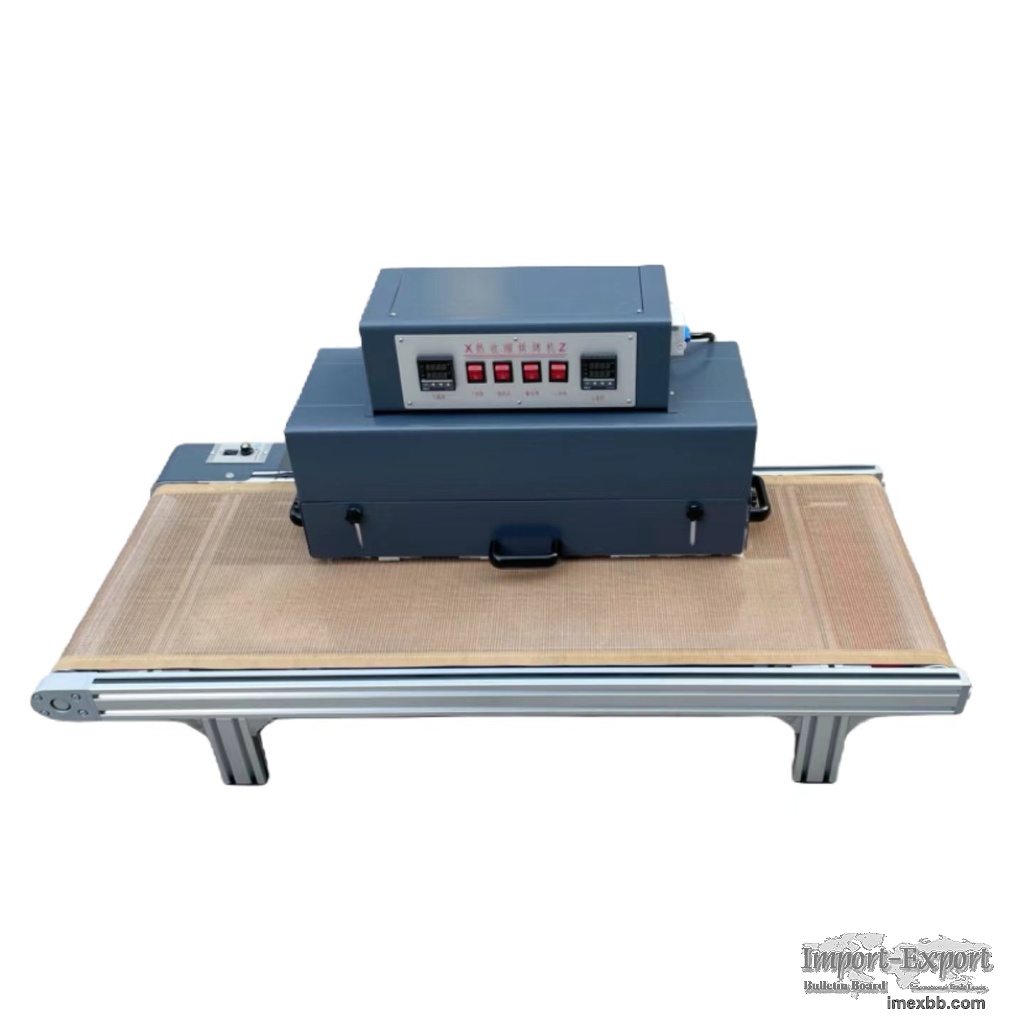

HL-XZ1040L Heat shrink baking machine (aluminum alloy profile structure ser

Model features:
This series of models is an open aluminum alloy profile structure heat shrink
baking
machine, suitable for electronic wire harness and new energy wire harness heat
shrink
tubes, circuit boards, inductor wire diagrams, copper bars, hardware
accessories and
other products (heat shrink baking size range small, but the product size is
relatively
long), or products that can only be heat-shrunk and baked at one end. 1. The
machine uses far-infrared heating tubes for heating (the new energy wiring
harness uses thermal radiation heat shrinkable tubes). There are heating tubes
installed
on the top, bottom, left and right, which can be heated at the same time. It is
also
equipped with a high-speed centrifugal fan, which can
Stir the heat evenly to keep the entire box at a constant temperature; the
products that
need to be heat-shrunk and baked can be heated at the same time, maintaining
the
original characteristics of the product, so that the product does not deform or
discolor
after heat-shrinking or baking, and the quality Stablize:
2. Use high-temperature resistant Teflon mesh belt (temperature resistant 0-
350℃), feeding in assembly line mode, fast baking speed and high efficiency:
3. Aluminum alloy profile structure mode, the mechanical size and structure can
be
customized and modified at will, and the machine model has a compact structure
and
exquisite design, and can also be moved and connected to the production line
and
controlled synchronously;
4. Intelligent control system, the heating temperature and speed can be
adjusted at will, which can adapt to the temperature and heat shrinking time
needs of different
products;
5. Independent control electric box, away from high temperatures; the double-
layer
design of the heating box is sandwiched with high-temperature insulation cotton
(temperature resistance 1200°C), so that the surface temperature of the box
will not be
overheated, which not only makes the working environment comfortable, but also
reduces Energy waste.

Minimum Order: 1 pieces
