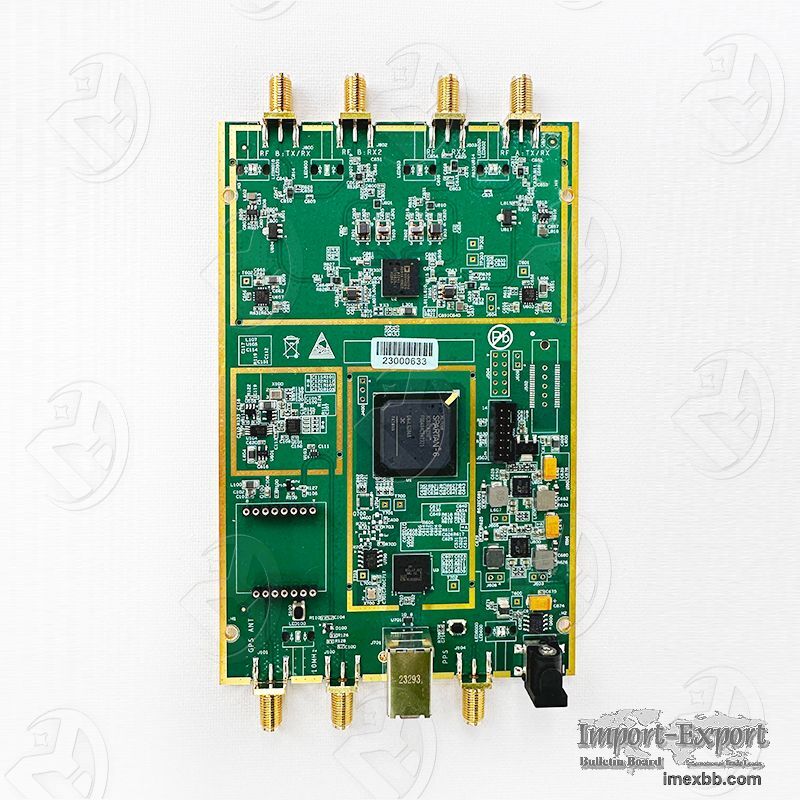

HM-B210

HM-B210（Single-Board）
Description
The B , 210 is a highly integrated Universal Software Radio Peripheral (USRP)
with a frequency range of 70 MHz–6GHz.
HM-B210 is an entry-level SDR device. It adopts an integrated RF transceiver
and provides a real-time signal bandwidth of up to 56MHz. In terms of
hardware, it provides a programmable Spartan6 FPGA, USB 3.0 connection and an
external power interface. In terms of software, thanks to the good
compatibility of USRP hardware driver (UHD), users can use third-party
platforms (GNU Radio) for quick development. Users can build their own projects
with rich open-source projects as references (e.g., 4G/5G demonstration refer
to OAI) to get rapid prototype.

Features
• Highly integrated, frequency range from 70MHz to 6GHz
• Up to 56 MHz of instantaneous bandwidth
• 2 TX & 2 RX, Half or Full Duplex with fully-coherent 2x2 MIMO capability
• USB 3.0 SuperSpeed interface with standard Type B USB 3.0 connectro
• Open-source UHD hardware driver
• Programmable Spartan 6 XC6SLX150 FPGA
• GNU Radio, C++ and Python APIs
• AD9361 RF Front-end
• GPIO capability

Application
Experiment with the HM-B210 across a wide range of applications including: FM
and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately
begin prototyping in GNU Radio and participate in the open-source SDR
community. Full support by the UHD software allows seamless code reuse from
existing designs, compatibility with open-source applications.
More: https://www.hmusrp.com/products/

Click to Enlarge
