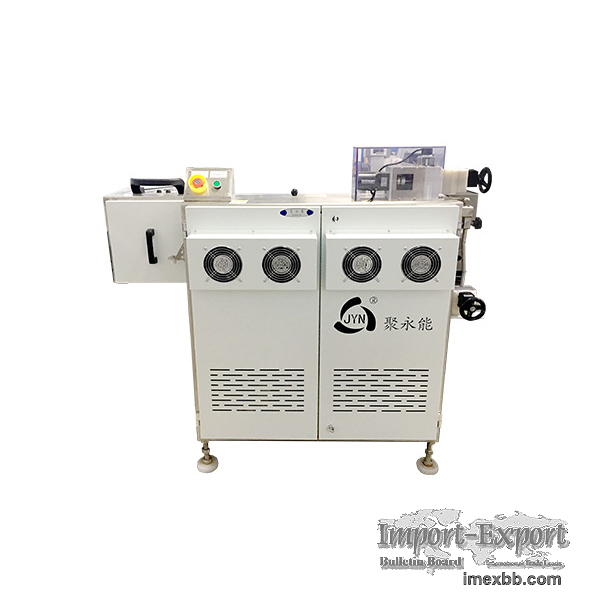

HM Pumex Grinding Machine

Name TSP
HM3/6-75 S/Z HM3/6-85 S/Z
Appearance Size L2247mm*W1600mm*H1400士25mm
L2887mm*W1600mm*H1 , 400士25m L2247mm*W1700mm*H1400士25mm
L2887mm*W1700mm*H1 , 400土25mm
Max HM3/6-75S/Z:660mm*660mm HM3/6-85 S/Z:762 mm*762mm
Min 250mm* 250mm
Substrate Thickness 0.2~ 3.2mm /0.5~ 8.0mm
Production Speed 1.5~3.0M/Min adjustable speed range 1.0~5.0M/Min
Total weight of the machine About 1.2T(2-axis)/About 1.6T(4-axis)
Applicable Process Dry Film Pre-treatment, Solder Mask Pre-treatment
