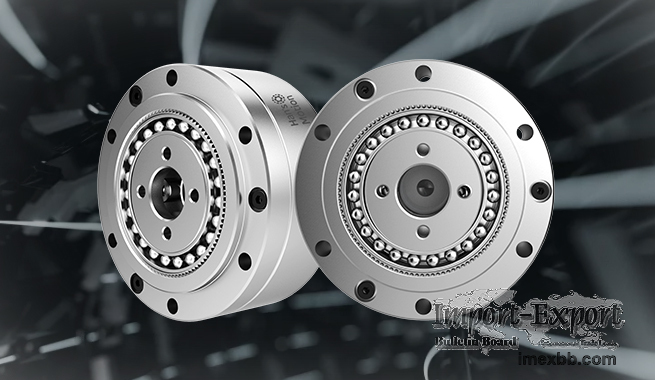

HMCD Series Harmonic Drive Cup Type

HMCD is Ultra-flat harmonic drive china, with characteristics as compact and
lightweight, input and output coaxial, excellent positioning accuracy and
rotation accuracy.

HMCD Series Harmonic Drive Cup Type List
HMCD-Ⅱ Unit (Super Flat) Series Harmonic Drive
HMCD-II is a highly compact and super flat with reinforced output bearing gear
set. Due to its very short overall length and low weight, it can be used for
space saving design installations. 5 sizes with 4 ratios are available.

Sealing Mechanism Of HMCG Series Harmonic Drive Cup Type
In Order To Prevent Lubricating Grease From Leaking And Keep The High
Durability Of The Harmonic Red
Rotational motion part: oil seal (built-in spring). Please notice whether there
is a scratch on the shaft side.

Flange mounting face, chimera: O-ring and sealant. Please notice whether the
plane is skewed or the meshing of the O-ring; (for the O-ring and O- groove for
reducer installation, See chart below).

Screw hole part: use the screw locking agent with a sealing effect (Loctite 243
is recommended) or sealing tape.

As a strain wave gear manufacturer, we can offer kinds of strain wave gears for
sale, and the strain wave gear price is affordable, if you have needs, please
contact us.

If you are looking for a professional harmonic drive company, please leave us a
message.
