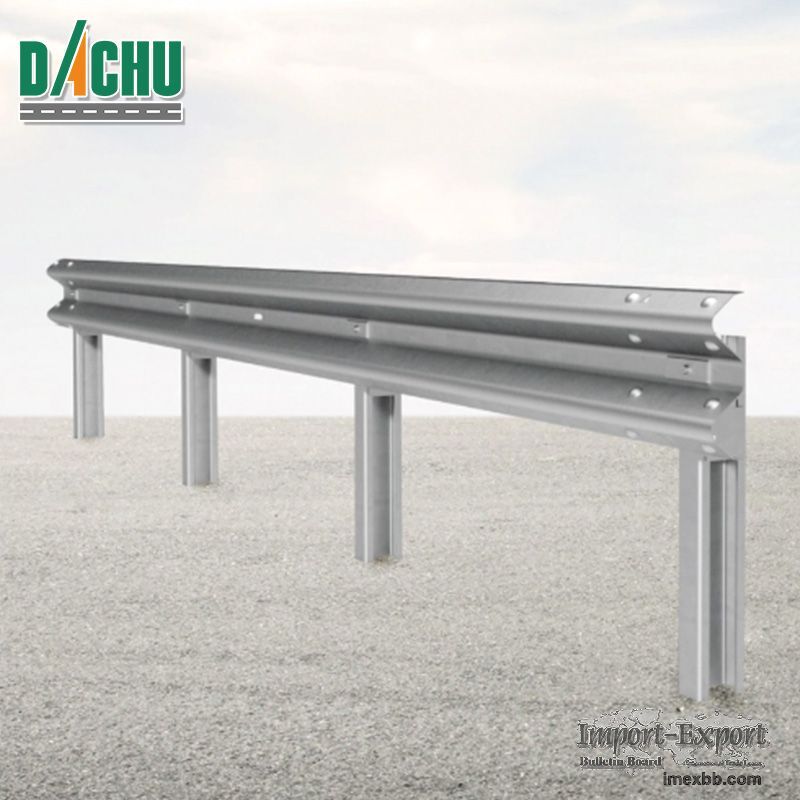

Hot Dip Galvanized W-Beam Guardrail

hot dip galvanized w-beam guardrail is cost-effective highway barriers designed
to reduce the collisions, preventing vehicle impact and lessen the likelihood
of vehicles overturning. It is the most common crash barriers used on South
African highways.
Guardrail Standard SANS 1350
Totally Length 4130MM
Effective Length 3810MM
Base Steel thickness 2.6MM / 3.25MM;Can be customized
Material S355JR Steel
Yield Point Minimum 345Mpa (50000psi);
Tensile Strength Minimum 483Mpa (70000psi);
Surface Treatment Hot Dip Galvanized
Zinc Coating Average 55μm or 395g/m2;Can be customized
Coat Standard SANS 121
Free Sample Available
