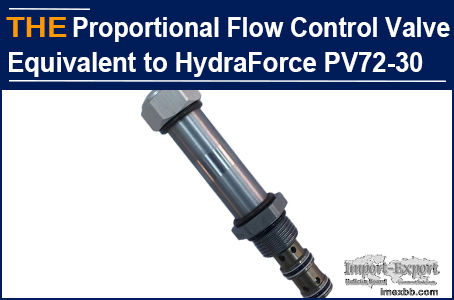

Hydraulic Proportional Flow Control Valve Equivalent to HydraForce PV72-30

This Monday, we launched an Electro-Proportional Priority Flow Regulator Valve
Cartridge equivalent to HydraForce standard part PV72-30.

It is a solenoid operated, pressure compensated, spool type, normally closed,
proportional priority flow control valve.

The features of this proportional priority flow control valve:
Excellent linearity and hysteresis characteristics.
Optional coil voltages and terminations.
Efficient wet-armature construction.
Cartridges are voltage-interchangeable.
Unitized, molded coil design.
Coil waterproofing standard.
Manual Override option.

A customer in Brazil placed a test order for 10 pcs last June in 2022. After 1
year of testing, it proves that the function and performance of AAK hydraulic
proportional priority flow control valve benchmarked the quality of HydraForce
PV72-30. Today, we received their re-peat order for 1,000 pcs qty.

AAK hydraulic solenoid operated proportional priority flow control valve 2
advantages:
1. Internal leakage: 0.38 lpm Max. at 207 bar (3000 psi), 0 current,
benchmarking HydraForce
2. Its service life is 2 times that of its peers

Technical parameters of AAK E-PV72-30 hydraulic solenoid operated proportional
priority flow control valve:
Max. Operating Pressure: Port 1: 240 bar (3500 psi); Port 2 and 3: 207 bar
(3000 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: 0.38 lpm (0.1 gpm) Note: Max. at 207 bar (3000 psi), 0
current
Cavity: 12-3

The newly launched AAK E-PV72-30 hydraulic solenoid operated proportional
priority flow control valve, benchmarking HydraForce PV72-30, has been approved
by customer in Brazil after 1 year of testing. You are welcome to try it out.

AAK HYDRAULIC VALVES (619) 2023-07-03

https://www.aakindustry.com/info , -detail/proportional-cartridge-valves-aak619
