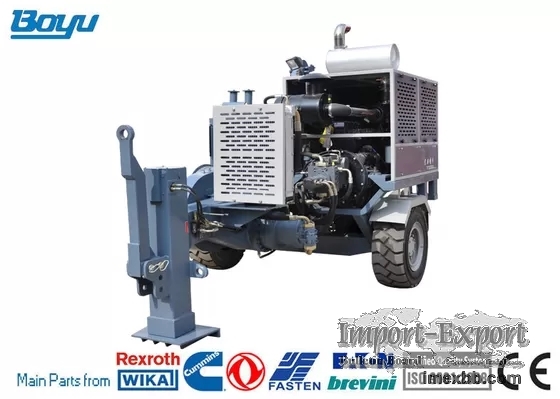

Hydraulic Puller Transmission Line Stringing Equipment Cummins Engine 540mm

Hydraulic Puller Transmission Line Stringing Equipment Cummins Engine



TY90 Hydraulic Puller


Hydraulic pullers are used to remove shaft-fitted parts (bearings or
couplings). Pullers use a controlled hydraulic force in an effective way and
can quickly separate (especially compared to the manual alternative) the
parts.This hydraulic puller allows for the tension stringing of twin-bundle
conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle
conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in
various terrains; besides, it can be used for traction stringing of OPGW or
ADSS optical cable and 220kV haulage rope in various terrains.



Characteristics

Bull-wheel diameter: 540mm

Total weight: 4350kg

Groove number: 8

Max diameter of rope reel: 1400mm

Max rope diameter: 21mm

Overall dimension (length*width*height): 4500×2100×2450mm



Performance

Max pull: 100kN

Max continuous pull: 90kN

Max speed: 5km/h

Pull at max speed: 40kN

Speed at max pull: 2.5km/h



Engine

Diesel 118kw(158hp) Euro II, 4-stroke cycle, turbo-charged

Cooling system liquid

Electrical system 24V



Main configuration

Engine: Cummins

Tail bracket hoisting motor: American Eton

Hydraulic meter: German

Speed reducer: German Rexroth

Main motor: German Rexroth

Hydraulic pump: German Rexroth

Operating handle: German Rexroth



Additional Devices

Lighting system for the trailer

Digital speed and meter counter (extra charge)

Hydraulic rope clamp for reel change

Trailer for towing at max speed of 30 km/h

Extra shaft

Swivel guide rope roller



Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating
directions.

This machine is provided with a pull pro-setting system that maintains the pre-
set pulling value (also when the speed is reduced to "0") by automatically
adjusting the operation speed according to the friction and unexpected loads
which may occur.



Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Grounding connection point

Hydraulic front stabilizer

On board reel winder with automatic level wind, suitable for standard reel mod.
1100 and 1400

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine



Additional Devices

Cable and radio remote control fully replacing all controls at machine panel.


Hydraulic system for drum stand control with flat face quick action couplings


The chassis provided with Brake, back lights and mudguard, with a single point
lift to allow lifting with a crane.


Remote diagnosis via GSM network with GPS modem, Synchronization system


Biodegradable hydraulic oil, Allowable tension indictor, Overload tension
alarm, First Aid Kit


Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic
insulation

Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Manufacturer's workshop maintenance manual, in English


Manufacturer's recommended tools.


Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).
