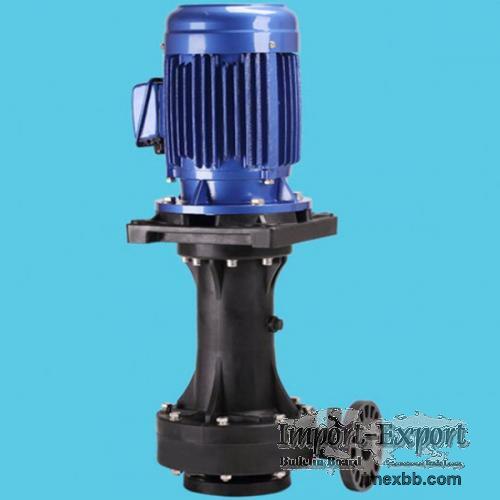

idling-capable vertical chemical pump

KSW special pump for exhaust tower, idling-capable acid alkali resistant vertical
chemical pump for coating electroplating industries.

1. The pump can idle, and pump is damaged for idling.

2. All the liquid parts of the pump are made of corrosion resistant FRPP, CFRPP and
PVDF materials, depending on the delivery of chemical liquid

3. The shaft seal design can prevent the chemical gas from damaging the motor
bearing, and the free chemical gas can be discharged smoothly through the air hole
on the support plate.

4. Closed impeller whose installation has nothing to do with steering.

5. The pump shaft is equipped with a protective cover.

6. Reinforced bearing can resist axial and radial stress.

7. Double layer anti-corrosion spraying

Performance range:

Frequency :50Hz/60HZ

Motor power: 1HP-15HP/0.75KW-115KW

Full flow: 280-1710 L/min (50HZ), 250-1950LPM

Total head: 16.5-35m(50HZ) /13-35m (60HZ)

Main material: FRPP, PVDF

Suitable temperature: 0~75℃ (FRPP), 0~90℃ (PVDF)

The pump is called as corrosion resistant vertical pump, acid and alkali resistant
etching pump, painted vertical pump, vertical pump outside the tank, vertical pump
for exhaust tower, vertical pump for engineering plastic, etc.

Minimum Order: 1 sets
