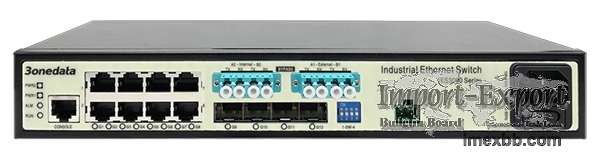

IES3000 Series

IES3000 Series
Industrial 12-port Full Gigabit Managed Bypass Industrial Ethernet Switches
Support 8 gigabit copper ports (Optional PoE), 4 gigabit SFP slots and 2 Bypass
Support ERPS, RSTP and STP ring network protocol
Support SW-Ring patented technology, automatic recovery time of network failure
< 20ms
Support SNMP and IPv6 management
Support dual power supply redundancy, optional AC/DC power supply
Support -40~75℃ wide operating temperature range

IES3000 series is industrial 12-port full gigabit managed ethernet bypass
switch. This product provides gigabit copper port (optional PoE), gigabit SFP
slot and 2 Bypass. It adopts rack mounting to meet the requirements of
different application scenes.
Network management system supports various network protocols and industrial
standards, such as ERPS, STP/RSTP/MSTP ring network protocol, 802.1Q VLAN, QoS,
IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, IPv6 Management,
etc. It also possesses complete management functions, including Port
Configuration, Port Statistics, Access Control, 802.1X Authentication, Network
Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI,
WEB, Telnet, SNMP and other access methods. It can provide users with good
experience with friendly design of network management system interface, simple
and convenient operation.
There are two independent power supply circuits inside the device, which can
ensure that it can operate normally when one fails. DIP switch can achieve
restoring factory defaults setting. When power supply or port has link failure,
ALARM indicator will be bright and send out alarm, meanwhile, alarm device
connected to the relay will send out alarm for rapid scene troubleshooting.
Hardware adopts fanless, low power consumption, wide temperature and voltage
design and has passed rigorous industrial standard tests, which can suit for
the industrial scene environment with harsh requirements for EMC. It can be
widely used in smart grid, rail transit, smart city, safe city, new energy,
intelligent manufacturing and other industrial fields.

Features and Benefits

SNMPv1/v2c/v3 is used for network management of various levels

RMON can be used for efficient and flexible network monitoring
Port mirroring can conduct data analysis and monitoring, which is convenient
for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual
management
DHCP server and client can be used for distributing IP address
File management is convenient for the device rapid configuration and online
upgrading
Log management has recorded booting, operation and connection information
SYSLOG supports transmitting system log information to remote server
Bandwidth management can reasonably distribute network bandwidth, preventing
unpredictable network status
Port statistics can be used for port real-time traffic statistics
Support Console/Telnet/WEB management method
User password can conduct user hierarchical management to improve the device
management security
Anti-attack control, ACL and 802.1X authentication can enhance the network
flexibility and security
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain the broadcast, unknown multicast and unknown
unicast
TELNET and HTTPS configuration can guarantee the data access security
Port trunking and LACP can increase network bandwidth and enhance the
reliability of network connection to achieve optimum bandwidth utilization
IGMP Snooping, GMRP and static multicast can be used for filtering multicast
traffic to save the network bandwidth
Support Port Isolation in the same VLAN to save Vlan resource
ERPS and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
and broadcast storm
IPV6 can solve the problem of limited internet address resources and the
obstacle of multiple device linking to the internet
Network Diagnosis and Troubleshooting can be conducted via Ping, Traceroute and
Port Loopback

Through independent R&D & innovation 3onedata has developed self-owned software
and launched thousands of products with four main product lines - Industrial
Ethernet Switch, Device Networking Product, Embedded Industrial Ethernet Module
and Industrial Wireless Networking Product, which have been widely used in
industries of Smart Grid, Rail Transit, Security, Automation Manufacturing and
so on.
