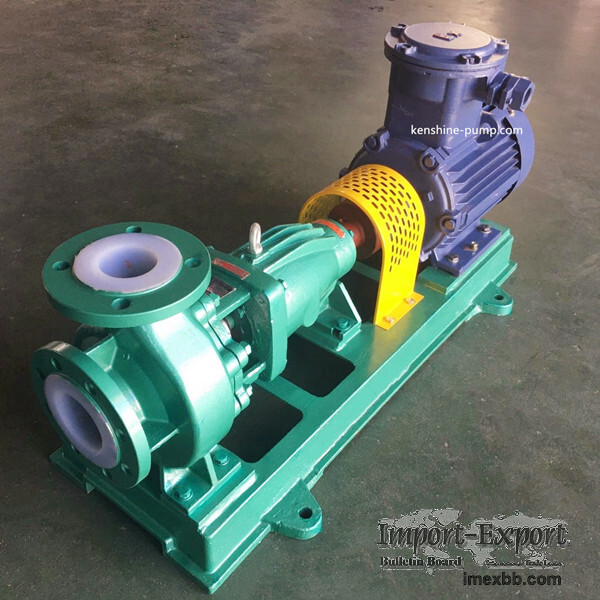

IHF Fluoroplastic liner chemical centrifugal transfer pump

Chemical industrial pumps

Our chemical industrial pumps can be made of metal such as stainless steel, bronze,
titanium alloy etc. materials or plastic such as PTFE/FEP/PVDF fluoroplastic,
fiberglass reinforced plastic, polypropylene plastic etc. or metal lined with
plastic.

Chemical pumps are widely used to convey acid, alkali, salt etc. corrosive
solution.

Fluoroplastic pump is used to convey sulfuric acid and has the economic cost.
Polypropylene and fluoroplastic pumps are suitable to convey hydrochloric acid.
Fluoroplastic pump and titanium alloy pump is suitable to convey nitric acid.
Stainless steel pump and fluoroplastic pump is suitable to convey acetic acid.
Stainless steel and plastic pump can be used to convey alkali such as sodium
hydroxide. Stainless steel SS316 pump and bronze centrifugal pump is suitable to
convey sea water or brine etc.

High temperature liquids pumping usually need the pumps equipped with cooling
devices. When the liquid below 120 degree Celsius is conveyed, the pump is
lubricated and cooled by the pumped liquids. CZ and IH Stainless steel chemical
centrifugal pumps adopt suspension structure and the pumped liquids can be up 160
degree Celsius. IHF fluoroplastic liner pump can pump the liquid up to 200 degree
Celsius. When the liquid at the temperature ranges from 120 degree Celsius to 300
degree Celsius is pumped, the pump cover should have cooling chamber and seal
should also have cooling liquid with double end faces mechanical seal. CQB-G high
temperature magnetic pump can pump the liquids below 280 degree Celsius. For the
high temperature medium above 300 degree celsius, not only the pump head part needs
to be cooled, but also the suspension bearing room should be provided with a
cooling system. The pump structure is generally in the form of center support, and
the mechanical seal is best to use metal bellows type.
