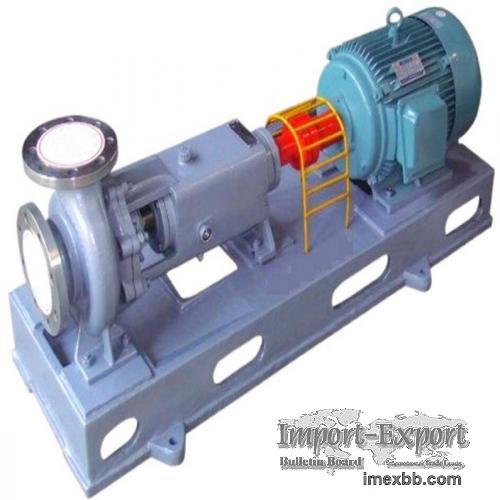

Ij Corrosion Resistant Chemical Pump For Alkali Liquid

Corrosion resistant chemical pump for alkali liquid

IJ type single stage single suction cantilever chemical centrifugal pump is a new
product optimized and designed based on the IH series chemical pump, referring to
the latest foreign technology and combining with the actual use of users.

Its rated performance and installation size comply with the ISO2858 standard, and
its manufacturing technical conditions comply with the ISO5199 standard.

It is mainly suitable for the transportation of slurry with a solid content less
than 50% and crystal impurities in chemical processes.

Compared with IH pumps, the structure of IJ chemical pumps has the following
characteristics:

1 - Shortened the cantilever of the impeller and thickened the diameter of the
shaft;

2 - Asymmetric cross-section volutes and pump casings without mouth rings;

3 - Three imported bearings are used;

4 - Equipped with a new type of seal similar to foreign advanced double face
mechanical seals or packing seals.

Due to the above structure, the pump has the following advantages:

1 - It can transport high viscosity or solid containing media, and the efficiency
of the pump is higher than that of the IH chemical pump;

2 - The asymmetric cross-section volute reduces the impact loss of fluid and
shortens the size of the pump casing;

3 - Increasing the strength of the shaft reduces the deflection of the rotor,
resulting in stable operation and long sealing life;

4 - The impeller nut is integrated with the impeller, improving the inlet
conditions of the pump and enhancing the anti cavitation performance of the pump;

5 - Advanced shaft seal form ensures better sealing effect and reduces pump
leakage;

6 - The clearance of the pump can be adjusted without disassembling the pump casing
and impeller, reducing maintenance time and saving maintenance costs.

Applicable fields: alkali production, salt chemical industry, petrochemical
industry, paper mills, pulp industry, refineries, coal chemical industry, power
plants, pharmaceutical industry, sugar industry, steelmaking plant, water treatment
coating industry (degreasing, phosphating, electrophoresis and other processes)

Minimum Order: 1 sets
