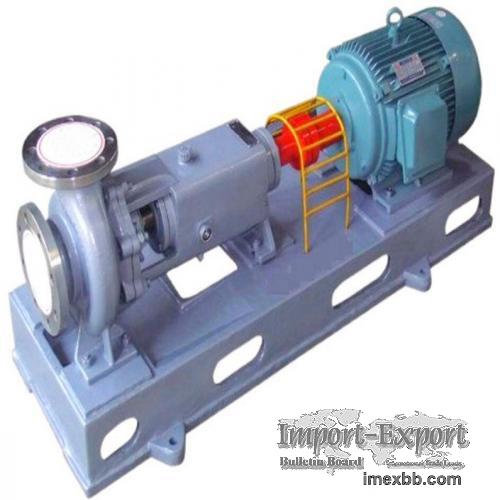

Ij Series Chemical Industry Centrifugal Pump

IJ Chemical resistant centrifugal alkali pump

A: Characteristics:

Reliable and Steady running, continuous working for 24 hours, better design of
cantilever, small vibration, low noise.

Seal type: mechanical seal, dynamic seal, gland packing seal etc.

(No leakage and long life).

Summary:

IJ chemical resistant centrifugal alkali pump is improved on the base of IH model
single stage single suction chemical industry pump according to the standard
ISO2858-1975 - The IJ chemical resistant centrifugal alkali pump is used to
transfer the corrosive liquid with solid content less than 5% and suspension grain
less than 3mm.

Pump discharge pressure is up to 1.6MPA, Working temperature: -20 to 180 Degree
Celsius.

B.

Application fields:

Alkali industry:

Soda and ammonia brine mother liquid from ammonia-hydrazine production, caustic
soda with normal temperature from Chlorine-alkali production, chlorine products and
chlorate, hypochlorite.

Nonferrous metallurgy:

electrolyte liquid from Electrolytic copper and nickel, acid mist liquid from
production of cobalt, slurry from production of zinc ore, vanadate ammonia from
production of vanadium, acid and sulfuric acid from production of gold etc.

Iron and steel industry:

Electroplating, pickling, waste acid treatment

Acid industry:

Nitric acid, sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, etc.

Petrochemical refining acetaldehyde, alkyl manufacturing.

Synthetic fiber and plastics industry:

Dilan, PVC production, textile, printing and dyeing industry.

Papermaking industry:

Transport of pulp cooking and bleaching fluids.

Fertilizer industry:

Urea, nitric acid production.

Pharmaceutical industry:

Pharmaceutical and pesticide production.

Environmental protection:

Transportation of acid mist solution.

C.

Pump materials:

SS304, SS304L, SS316, SS316L, Hastelloy alloy B and other alloy steel etc

2Cr13, 0Cr18Ni9, 1Cr18Ni9, 0Cr18Ni9Ti, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti, 40Cr,
1Cr18Ni12Mo2Ti, Ti(Titanium, Monel, 00Cr17NI12Mo2Ti, HastelloyB alloy, 0Cr25Ni20,
F5 series alloy, 20alloy steel, 0Cr25Ni6Mo3Cu2Mn2Si

D.

Performance range for IJ Series chemical resistant centrifugal alkali pump：

Flow rate(Q)：2m3/h to 1200 m3/h, Head(H)：3m to 135m, Speed(N)： 2900RPM or
1450RPM, Motor power(P)：0.55KW to 200kw, Pump inlet and outlet: 32mm to 350mm,
Max.

working pressure: 1.6 Mpa

Minimum Order: 1 sets
