Industrial Rugged Embedded PC Komputer NVIDIA Jetson AGX Orin 32G

Product Description
Industrial Rugged Embedded PC Komputer NVIDIA Jetson AGX Orin 32G

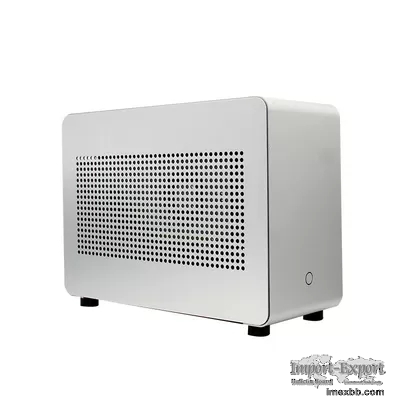

NVIDIA Jetson AGX Orin 32G Industrial Embedded Computer


The ORIN32-8F4E1 hardware platform is an ITX-type industrial embedded pc that
combines the energy-efficient NVIDIA Jetson AGX Orin 32G core module and the
AI-enabled NVIDIA RTX 6000/A6000 GPU. The embedded computer system support for
multiple sensors make this the ideal solution for applications from
manufacturing and logistics to retail and healthcare. Direct access to the
NVIDIA Clara AGX/ Holoscan development kit. The development kit comes with end-
to-end reference applications for sensor processing, image reconstruction, AI
and visualization, which can help developers get started quickly and reduce
overall development time.



NVIDIA Jetson AGX Orin Industrial Embedded Computer

Product Features and Specifications



Product size

146mm×335mm×257 mm

Power requirements

220V
Working temperature

-20~+65°C

Weight

5050g
Optional expansion

32GB ~ 1TB SSD storage

Maximum scalability 512g TF card memory

4G and WIFI module can be extended

The initial setting can be reset and restored



























NVIDIA Jetson AGX Orin Specifications



Model

NVIDIA Jetson AGX ORIN 32GB

NVIDIA Jetson AGX ORIN 64GB

AI Performance

200 TOPS

275 TOPS

GPU
1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores

2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores

CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3

Memory

32GB 256-bit LPDDR5 204.8GB/s

64GB 256-bit LPDDR5 204.8GB/s

Storage 64GB eMMC 5.1
PCIe Up to 2 x8 + 1 x4 + 2 x1
(PCIe Gen4, Root Port, & Endpoint)
Networking 1x GbE
1x 10GbE
Mechanical 100mm x 87mm
699-pin Molex Mirror Mezz Connector
Integrated Thermal Transfer Plate








































NVIDIA Jetson AGX Orin Industrial Embedded Computer Order Information



Model

Description

AGX32-8F4E , 1

AI industrial computer with NVIDIA Jetson AGX Xavier series core modules
(standard model)

ORIN32-8F4E1

AI industrial computer with NVIDIA Jetson AGX ORIN series core modules
(standard model)

AGX32-8F4EN

AI industrial computer with NVIDIA Jetson AGX Xavier series core modules,
In the model, N is the total number of network ports in the whole machine. When
the number of network ports is more than 7, the hard disk cannot be added. If
you need to increase the hard disk, please communicate with the company's sales
staff in advance.

ORIN32-8F4EN

AI industrial computer with NVIDIA Jetson AGX ORIN series core modules In the
mode, N is the total number of network ports in the whole machine. When the
number of network ports is more than 9, if you want to add a hard disk, you
have to add it under the module.

So, in order to prevent the module from disassembling damage, please
communicate with our sales staff in advance.

AI industrial computer with NVIDIA JetsonTM AGX ORIN series core modules In the
mode, N is the total number of network ports in the whole machine. When the
number of network ports is more than 9, if you want to add a hard disk, you
have to add it under the module.

So, in order to prevent the module from disassembling damage, please
communicate with our sales staff in advance.
