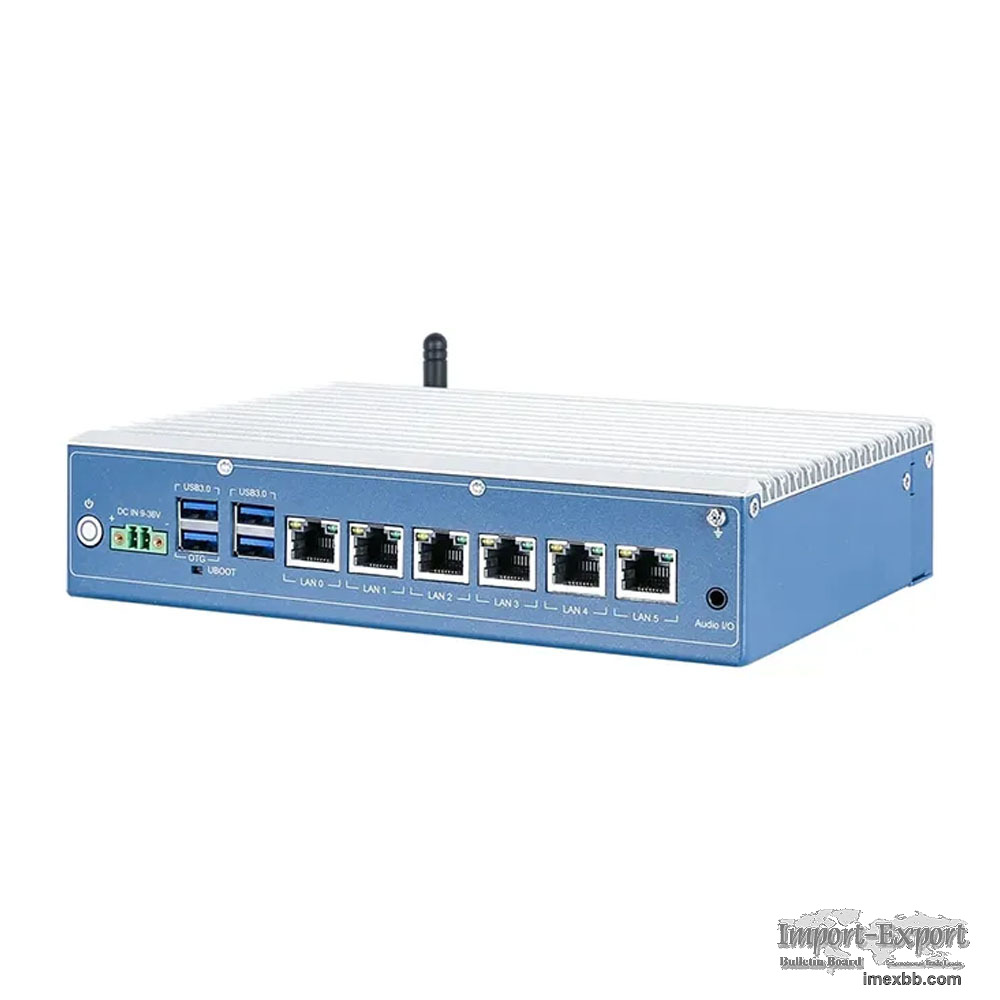

Multifunctional Embedded Computer (Gateway + Data Logger + IPC) All-in-one

TPC14-AIoT is a flagship multifunctional industrial control computer
positioned at the high end and designed for complex applications. With
groundbreaking interface density, high-performance computing power, and
industrial-grade protection, it delivers innovative application solutions
for scenarios such as industrial automation, energy and transportation,
machine vision, security and surveillance, and stage audio-visual systems.
It comes standard with the Rockchip® RK3588 octa-core 64-bit processor,
integrates 6 TOPS of AI computing power, and supports 8K video
encoding/decoding and 8K display output. The ultra-dense digitally isolated
I/O ensures reliable expansion and connection of massive peripheral
devices, significantly enhancing system stability and equipment safety in
harsh electrical environments.
- RK3588 Octa-core CPU + 6 TOPS NPU
- 4/8GB RAM + 64~256GB eMMC
- 8K video encoding and decoding, 8K display output
- mini-PCIe supports 3G/4G or WiFi + Bluetooth
- 2 x 2.5GbE + 4 x GbE multiple network port expansion
- 2 x HDMI input + 4 x HDMI output
- 10 x COM + 2 x CAN + 8 x GPIO
- -20℃~70℃ wide operating temperature range, 9V-36V wide voltage input

Minimum Order: 1 sets
